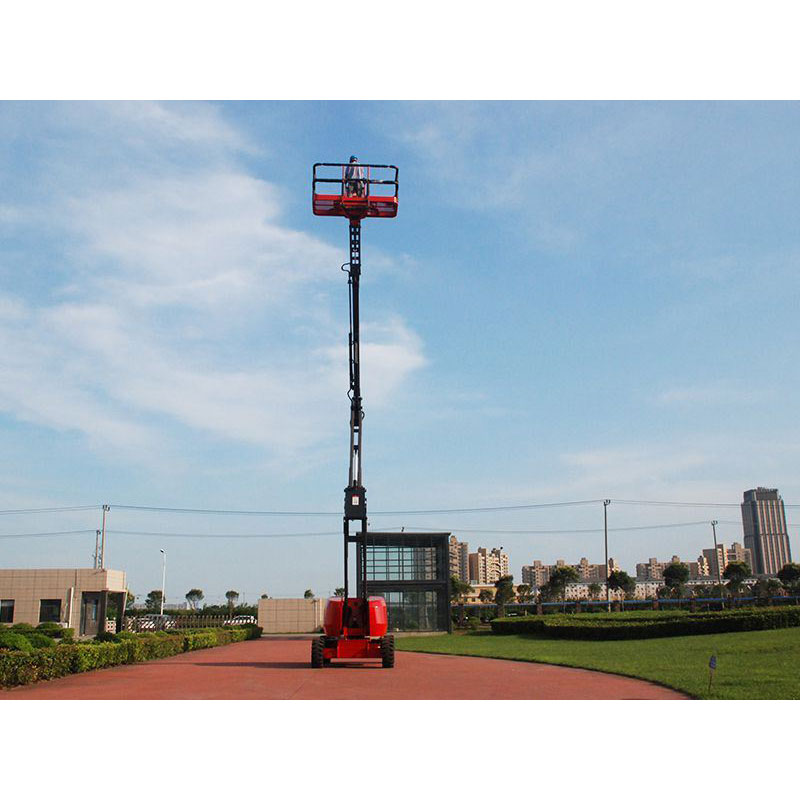

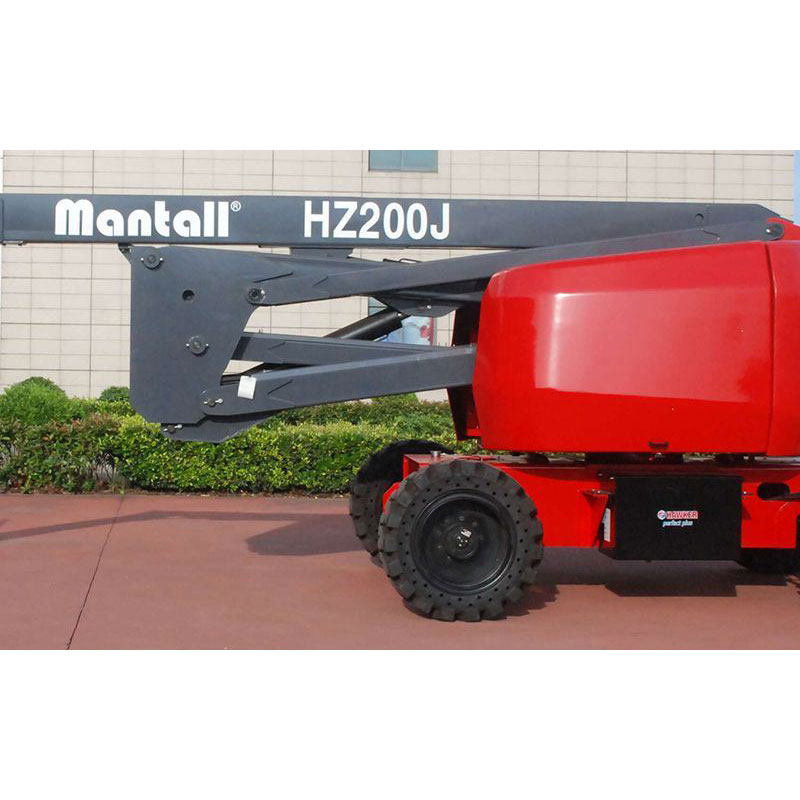

Mantall HZ 200J – 20m

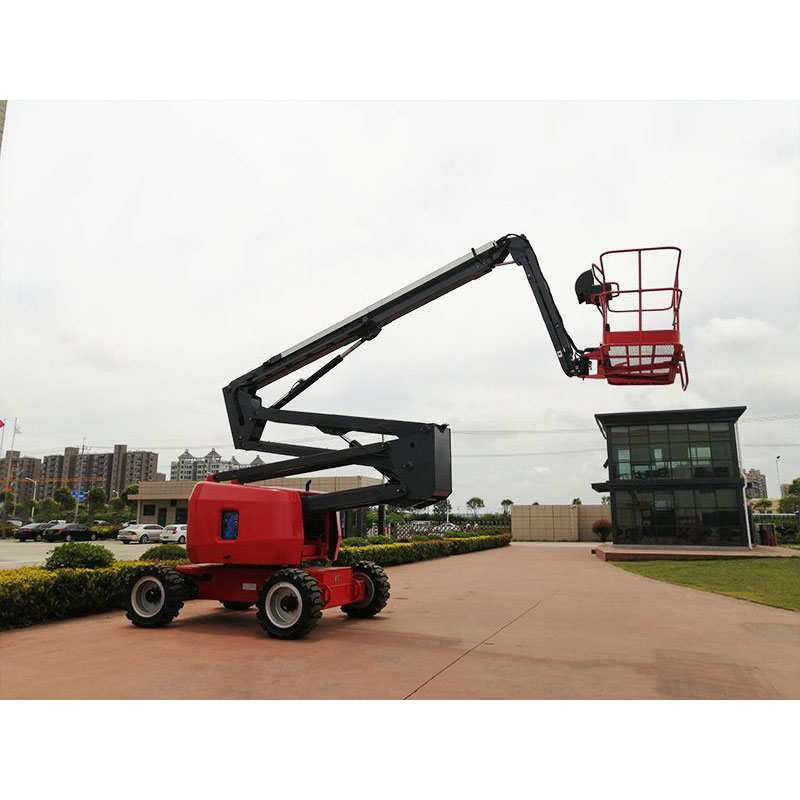

Mantall HZ200J articulated boom lift has a maximum working height of 20 meters, a 360-degree turntable rotation, a working platform that can move up and down, left and right, non-marking tires and power batteries. The zero emission and low noise characteristics make it suitable for indoor applications.

HZ200J is equipped with Hall effect proportional joystick and CAN intelligent control system, which makes maintenance and upgrade easier. HZ200J articulated boom lift can perform multi-directional precise positioning and lifting operations, enabling workers to work in a limited working area and avoid obstacles.

Send forespørsel
Max. working height m

20m
Max. platform height m

18m
Max. outreach m

11m
Max. up and over clearance

7.71m
Max. lift capacity KG

230kg
Platform size B*C*A

1.8m×0.76m×1.1m
Height-stowed D

2.5m
Length-stowed E

7.8m
Width F

2.5m
Wheelbase G

2.5m
Ground clearance H

0.3m
Turntable rotation

360° discontinuously
Turntable tailswing

0.58
Platform rotation

180°
Jib Swing

0/135°
Platform Level

Hydraulic level
Drive speed, stowed

4.0km/h
Drive speed, extended

1.0km/h
Gradeability

45%
Max. tilt angle

3°
Max. lateral force N

400N
Max. wind speed allowed

12.5m/s
Min. turning radius-(inside)

2.51m
Min. turning radius-(outside)

5.69m
Drive wheels number

2
Steering wheel number

2
Controls

Electrical hydraulic proportional control
System voltage

DC24V
Hydraulic tank capacity

68L
Tire size

355/55D-625
Power

DC48V/420Ah
Vekt 6000 kg
Transportmål 780 × 250 × 250 cm
Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor
Optional
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
