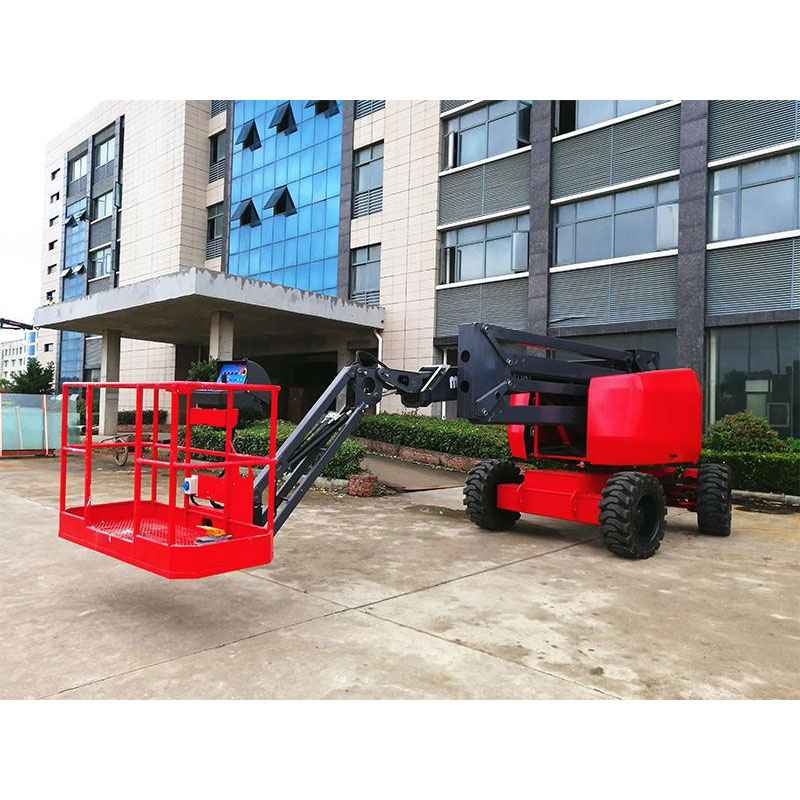

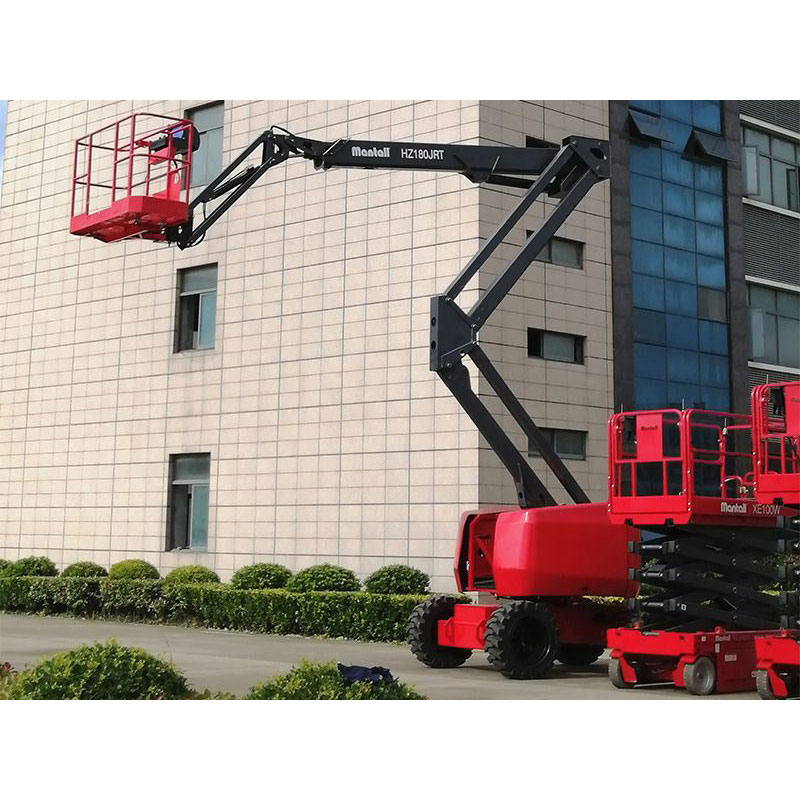

Mantall HZ180JRT – 18m

Our HZ180JRT self-propelled articulated boom lifts are designed to support working heights up to 18 meters, they are suited for multi-directional precise positioning and lifting operations and enable workers to reach work areas that are difficult to access while avoiding obstructions.

The self-propelled articulated boom lift makes it easier for workers to accomplish their tasks because of its 360-degree rotating turntable and working platform that can move up, down, left and right. It is also perfect for indoor applications and can protect flooring thanks to its ultra-quiet non-marking tires.

Our HZ180JRT self-propelled articulated boom lifts have a fully proportional Hall effect joystick and CAN intelligent control system, making maintenance and upgrading simpler while performing multiple actions simultaneously.

Send forespørsel
Max. working height

18m
Max. platform height

16m
Max. outreach

9.5m
Max. up and over height m

7.6m
Max. lift capacity

230kg
Platform size B*C*A

1.83m×0.76m×1.1m
Height-stowed D

2.50m
Length-stowed E

8m
Width F

2.30m
Wheelbase G

2.10m
Ground clearance H

0.36m
Turntable rotation

360° continuously
Turntable tailswing

0
Platform rotation

0/180°
Jib swing

0/135°
Platform level

Hydraulic level
Drive speed, stowed

4.8km/h
Drive speed, extended

1.0km/h
Gradeability

30%(45%4WD)
Drive wheels number

4WD
Steering wheel number

2
System voltage

DC12V
Controls

Electrical proportional control
Min. turning radius-(outside)

4.5m
Min. turning radius-(inside)

1.7m
Max. lateral force

400N
Max. tilt angle

3°
Max. wind speed allowed

12.5m/s
Hydraulic tank capacity

170L
Fuel tank capacity

140L
Tire size

355/55D-625
Power

Yanmar 4TNV88
Vekt 8420 kg
Transportmål 800 × 230 × 250 cm
Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor

Optional

  • 2.4m platform
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
