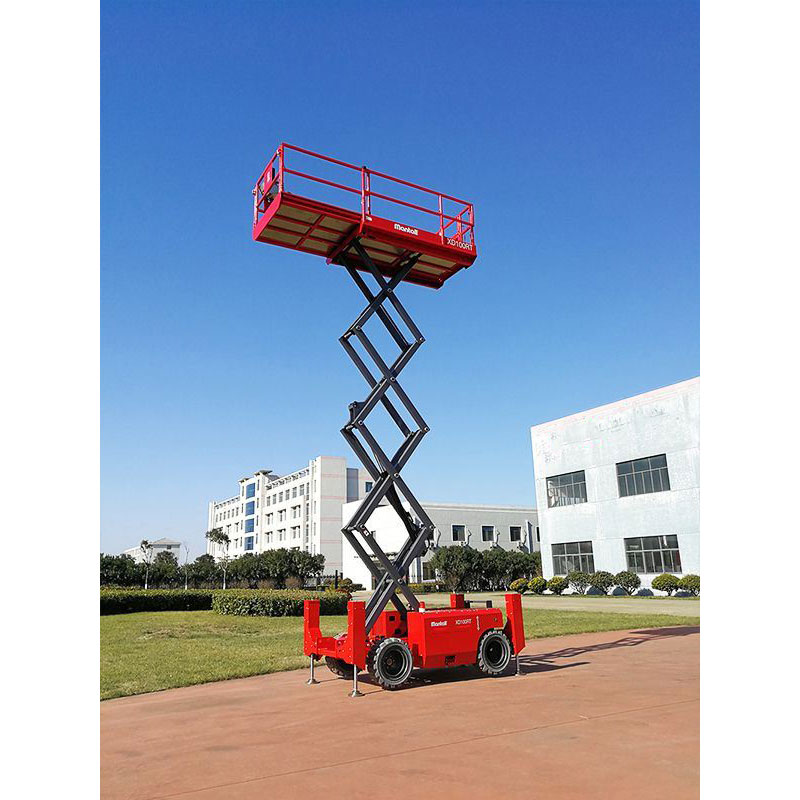

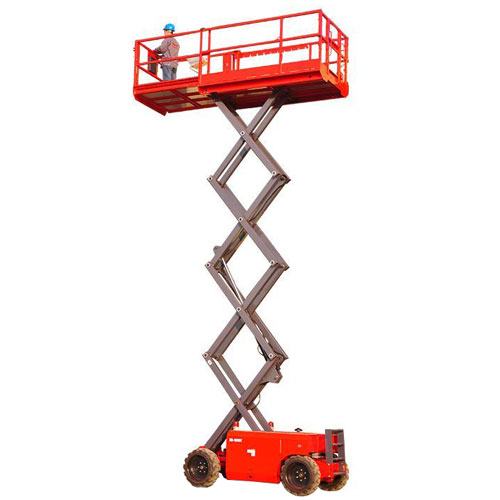

Mantall XD140RT – 14m

Mantall XD140RT Rough Terrain Scissor Lift has a maximum working height of 14 meters.

It is equipped with a diesel engine, a 4-meter-long extension platform. XD140RT can carry 2 to 4 workers according to different product standards, with a maximum load of 345 kg.

With four-wheel drive and 40 percent gradeability, XD140RT enables workers to get a variety of jobs done on rough terrain. XD140RT rough terrain scissor lift features a proportional joystick for more efficient work.

Send forespørsel
Working height max H1

14m
Platform height max H2

12m
Platform extension size

1.5 m
Lifting capacity

345 kg
Lifting capacity on the extension

136 kg
Dimension of the platform B*C*A

2.5*1.6*1.15 m
Platform length-extended K

4 m
Platform skirting board height L

0.15 m
Overall length and width E*F

2.67*1.76 m
Height stowed D

2.65 m
Height-guardrails folded M

1.98 m
Wheelbase G

1.89 m
Ground clearance H

0.17 m
Turning radius-inside

1.58 m
Turning radius-outside

3.89 m
Raising time/Lowering time

50/42s
Drive speed-stowed

4.0 km/h
Drive speed-raised

0.8 km/h
Gradeability

40%
Tilt sensor (front to back/side to side)

3° / 2°
Outrigger level ability-front to back

9°
Outrigger level ability-side to side

13°
Hydraulic tank capacity

68 L
Fuel tank capacity

57 L
Tire size

675*280 mm
Max. platform occupancy (Indoor/Outdoor)

3/2 pers
Power source

Kubota/Yanmar
Control

Control Proportional
Drive

4-wheels drive
Weight

4220 kg
Weight-with outriggers

4680 kg
Transportmål 267 × 176 × 265 cm
Standard Features
  • Foldable guardrail
  • Diagnostic system
  • AC wiring to platform
  • 4 wheel drive
  • Tilt level sensor with an audible alarm
  • Lowering alarm
  • Horn
  • Hour meter
  • Emergency pump
  • Proportional controls
  • Solid rough tire
  • Safety brackets
  • Dual flashing beacon
Optional
  • Automatic leveling hydraulic outriggers
  • Airline to platform
  • Motor cold starting components
  • Overload sensor
  • Moveable alarm components
  • Non-mark rough tires

Function Description

  • The metric system height is 2 meters higher than platform height
  • CE/AUS market: XD can be used indoors and outdoors, to accommodate 2 persons
  • Climbing capability is suitable for driving on the slopes, refer to the operator’s manual for details on slope class level
  • Weight according to the opitions and standards vary from country to country.
