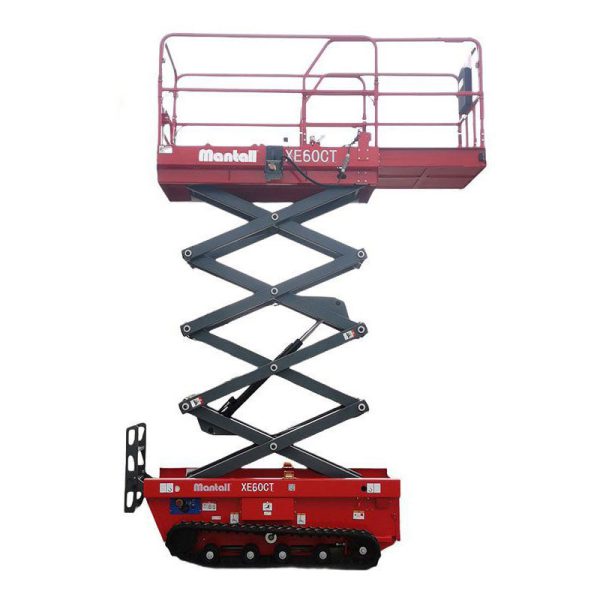

Mantall XE60CT – 6.8m

Mantall has a wide range of crawler lifts for indoor and outdoor use. The XE60CT has a working height of 6.8 m and a max platform extension of 0.9m. The platform capacity is 230 kg.

Tre crawler scissor lift features a rubber-track undercarriage with a tank-like structure, which allows it to work on soft terrain without sinking, thus overcoming the restriction that aerial work platforms only can operate on the hard ground.

This crawler scissor lift will not damage the floor or leave a trace when turning at zero degree thanks to its non-marking rubber tracks, making it suited to indoor jobsites. The crawler track system is characterized by low noise level and less vibrations, and ideal for quick transportation from one job site to another.

Send forespørsel
Max. working height H1

6.8 m

Max. platform height H2

4.8 m

Max. outreach

0.9 m

Lifting capacity

230 kg

Lifting capacity on the extension

115 kg

Platform size B*C*A

1.84×0.9×1.1 m

Overall length and width E*F

2.26×1.01 m

Height stowed D

2.12 m

Height-guardrails folded

1.75 m

Ground clearance(m)

0.13 m

Raising time/Lowering time(s)

24/22 s

Drive speed, stowed

1.7 Km/h

Drive speed, raised

0.7 Km/h

Gradeability

40%

Tilt sensor- front to back

Tilt sensor- side to side

Drive Model

Electric Drive

Hydraulic tank capacity

7 L

Crawler size

Y200*72 -49 Section

Max. platform occupancy

2 pers

Power source

24V/225Ah

Vekt 1140 kg
Transportmål 226 × 101 × 212 cm
Standard Features
  • 0.9X1.84m platform
  • Tilt alarm system
  • Fault diagnosis system
  • Explosion-proof of the oil tube
  • Automatic brake system
  • Safety maintenance support bar
  • 200X72 hard rubber crawler
  • Hour meter
  • External charging indicator
  • AC socket in the platform
  • All motion alarm
  • Fault code display
  • Flash light
  • Buzzer
  • Proportional control
  • Emergency lower down
  • Manual brake release
  • Maintenance free battery
Optional
  • Handheld fault diagnostic device
  • Overload sensor
