Max.Working height H1 | 12 m |
---|---|
Max. Platform height H2 | 10 m |
Lift capacity | 250 kg |
Platform size B*C*A | 1.44*0.6*1.1 m |
Overall length E | 1.74 m |
Width F | 0.81 m |
Stowed Height D | 1.86 m |
Outrigger expansion I*K | 2.45*2.34 m |
Minimum ground clearance | 0.07 m |
Power unit(AC) | 220V/1.5KW |
Power unit(DC) | 12VDC/1.6KW |
Battery | 12V/120Ah |
Charger | 12V/15A |
Casters (front wheels) | 8 in |
Casters (Rear Wheel) | 6 in |
Weight(KG) | 760(AC)/830(DC) |
Transportmål | 174 × 81 × 186 cm |

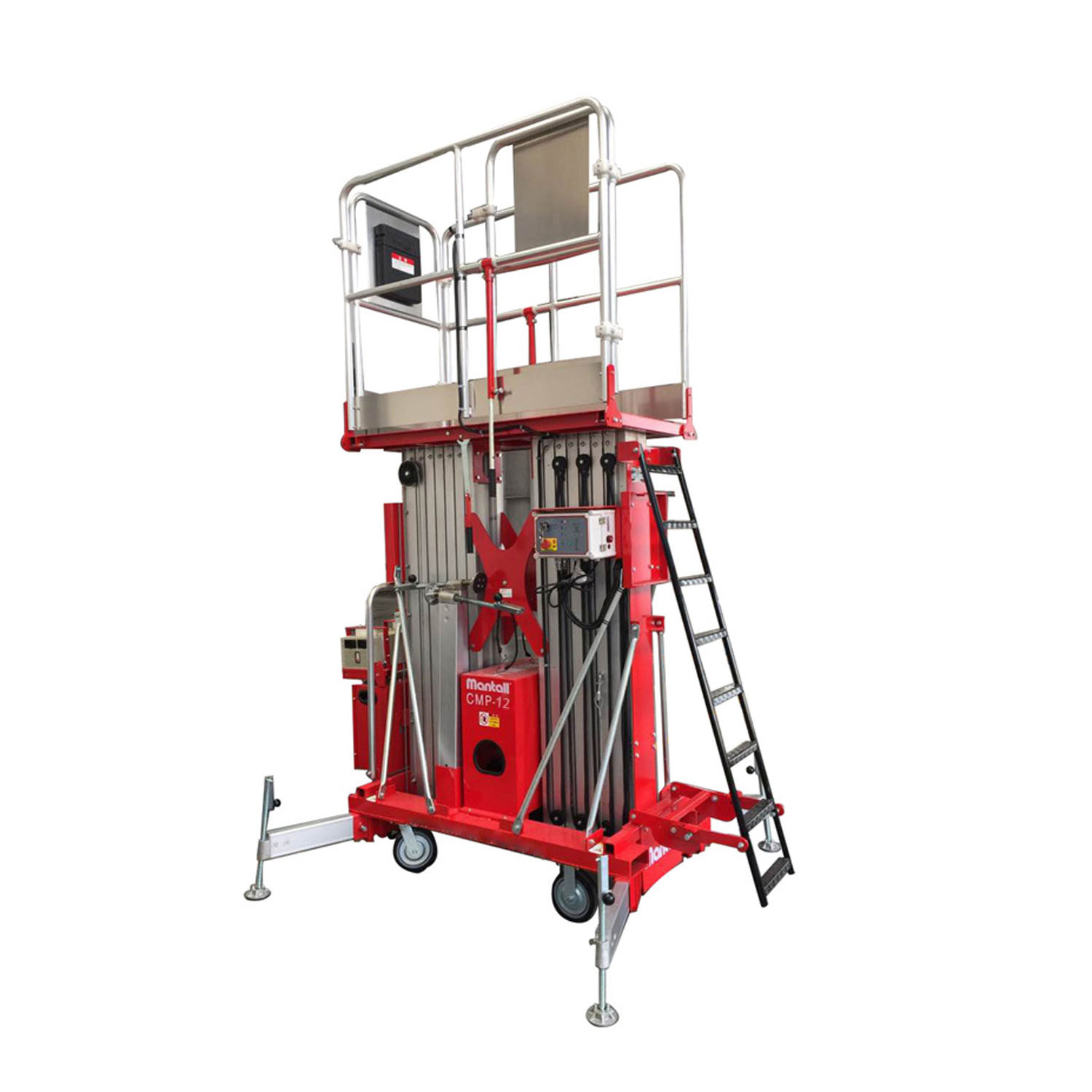

Mantall CMP12CT – 12m
Mantall CMP series double mast aerial work platforms are economical and portable elevated working platforms that can lift two workers and their tools safely and stably, with a maximum working height of 12 meters. The double mast aerial work platform provides exceptional stability with a high strength aluminum mast system and heavy-duty lifting chains, ensuring the safety of workers.
The robust steel chassis is utilized to further guarantee the safety even when the aerial work platform runs on a harsh working environment. The large platform provides ample space for workers to perform their jobs with ease. In addition, our double mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.
- Polyurethane Non-mark tires
- Forklift Pockets
- Foldable Inclined Ladder
- Two controls: Platform Control and Ground Control
- Lower Beeper warning
- Emergercy Lower Down
- Maintenance-free battery
- Narrow/Rough Ground Chassis
- Tool Box
- Platform Positioning Laser light
- Fluorescent Tubes Box
- Working Flashing Beacon
- Top Limit Protection Auto-stop device
- Auxiliary drive wheel
- Equipment Protection cover
