Mantall CMP14CT – 14m

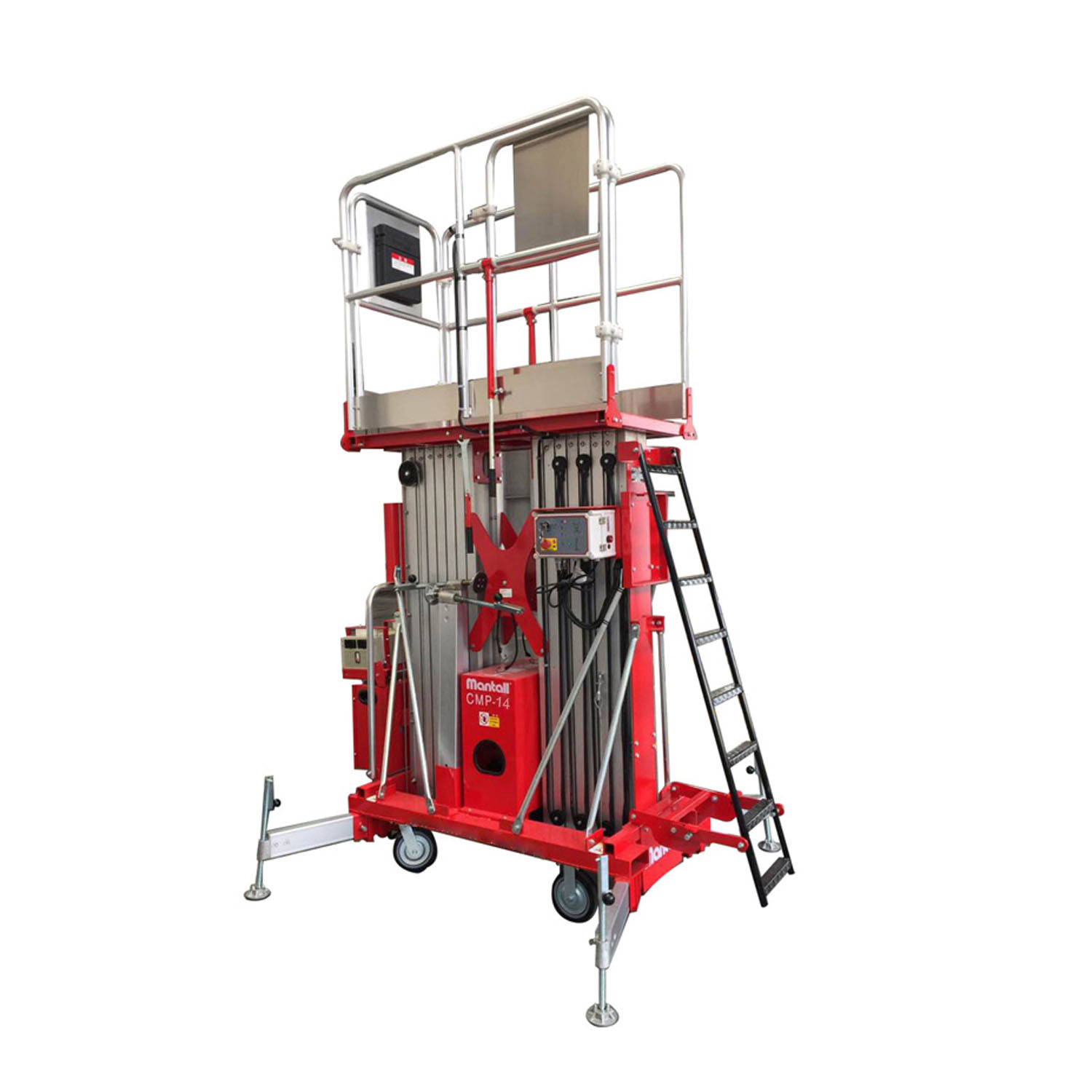

Mantall CMP series double mast aerial work platforms are economical and portable elevated working platforms that can lift two workers and their tools safely and stably, with a maximum working height of 14 meters. The double mast aerial work platform provides exceptional stability with a high strength aluminum mast system and heavy-duty lifting chains, ensuring the safety of workers.

The robust steel chassis is utilized to further guarantee the safety even when the aerial work platform runs on a harsh working environment. The large platform provides ample space for workers to perform their jobs with ease. In addition, our double mast aerial work platform is provided with dual control system that enables the platform to be moved up and down by simply controlling from either the platform or ground control station.

Send forespørsel
Max.Working height H1

14 m

Max. Platform height H2

12 m

Lift capacity

200 kg

Platform size B*C*A

1.44*0.6*1.1 m

Overall length E

1.81 m

Width F

0.81 m

Stowed Height D

2.08 m

Outrigger expansion I*K

2.45*2.34 m

Minimum ground clearance

0.07 m

Power unit(AC)

220V/1.5KW

Power unit(DC)

12VDC/1.6KW

Battery

12V/120Ah

Charger

12V/15A

Casters (front wheels)

8 in

Casters (Rear Wheel)

6 in

Weight(KG)

844(AC)/880(DC)

Transportmål 181 × 81 × 208 cm
Standard Features
  • Polyurethane Non-mark tires
  • Forklift Pockets
  • Foldable Inclined Ladder
  • Two controls: Platform Control and Ground Control
  • Lower Beeper warning
  • Emergercy Lower Down
  • Maintenance-free battery
Optional
  • Narrow/Rough Ground Chassis
  • Tool Box
  • Platform Positioning Laser light
  • Fluorescent Tubes Box
  • Working Flashing Beacon
  • Top Limit Protection Auto-stop device
  • Auxiliary drive wheel
  • Equipment Protection cover
