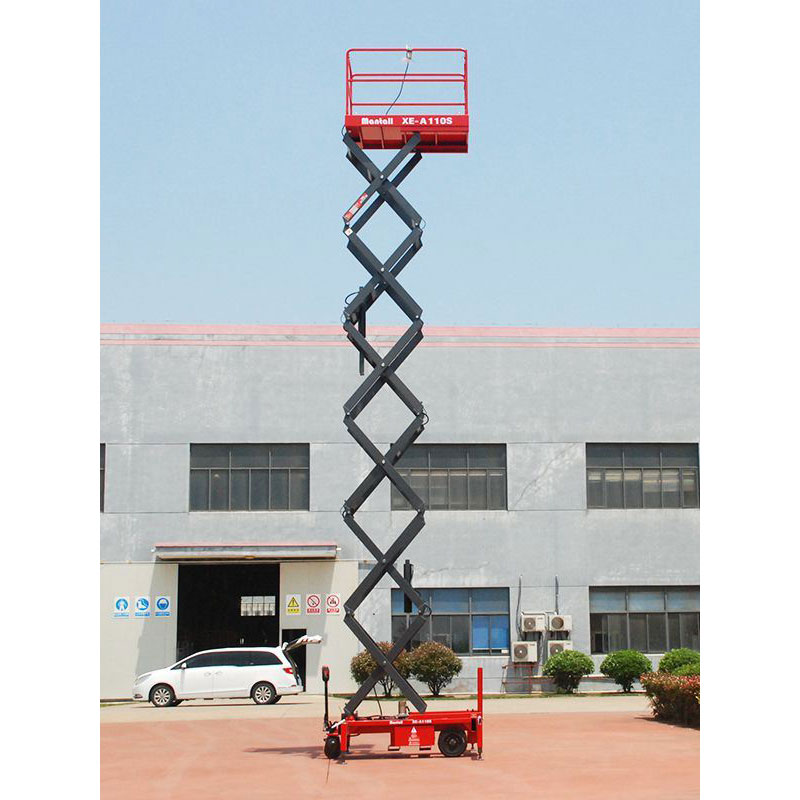

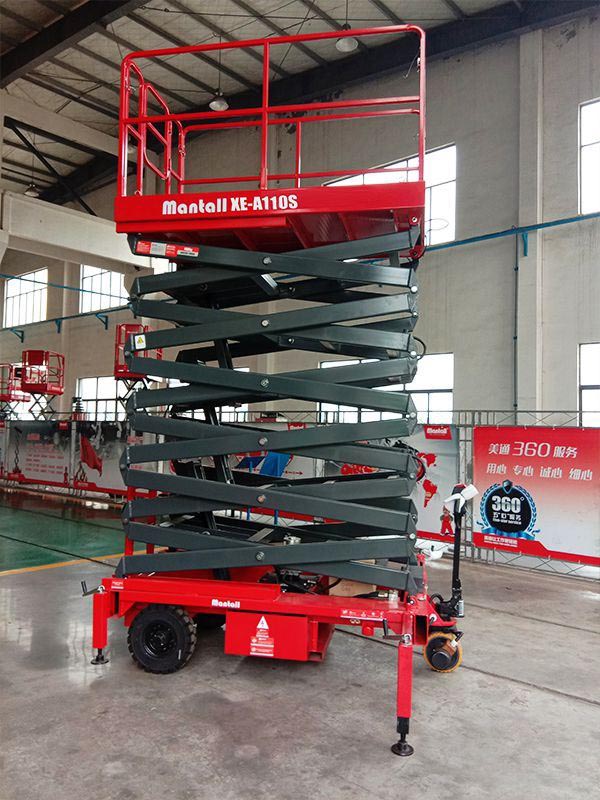

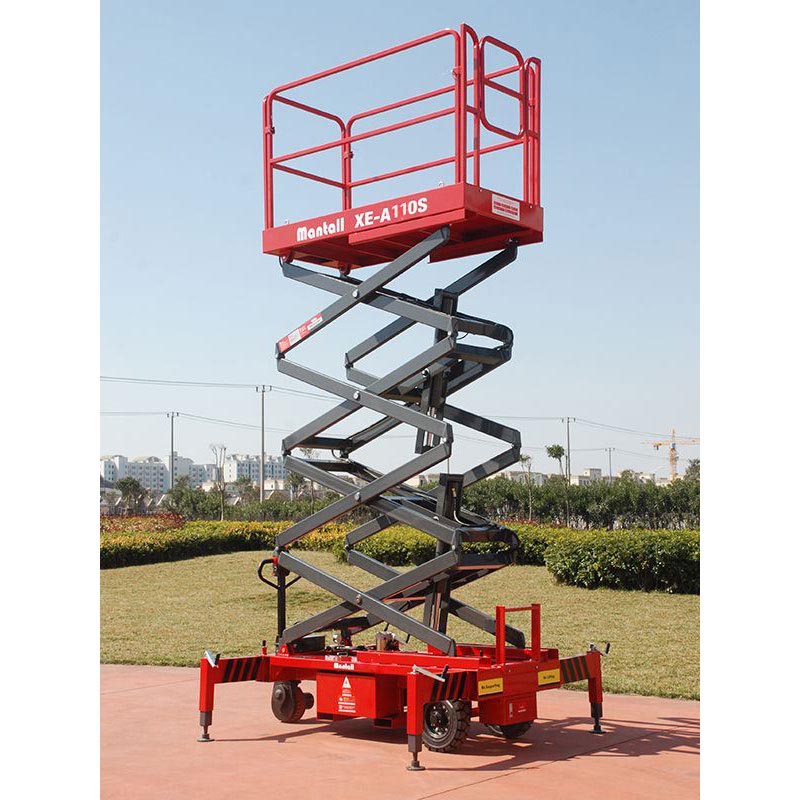

Mantall XE-A110H

Mantall XE-A series mobile electric scissor lifts are an eco-friendly solution to lift people and heavy loads to working heights of up to 11 meters. The quiet and zero-emissions operation makes the electric scissor lift suitable for both indoor and outdoor applications.

Send forespørsel
Working height max

11m

Platform height max

9m

Lift capacity

1000 kg

Platform size ( L*W)

1.8*1.25 m

Stowed size(L*W*H)

1.85*1.49*1.65 m

Raising time

108 s

Traction speed

0-16.8 km/h

Lifting motor power

3 kW

Driving motor power

1.2 kW

Power source

DC24V

Vekt 1850 kg
Transportmål 185 × 149 × 165 cm
Standard Features
  • Electric self-propelled, can operate by one person for drive and work in high position
  • Hydraulic line rupture protection device
  • Screw support leveling device
  • Emergency stop button
  • Emergency lower down
  • Rain-proof control box
  • Automatically battery charger
Optional
  • Extended Platform (below and included XEA130S model)

Function Description

  • This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
  • Strong driving power and fast traction speed
  • With on board diagnostic system, intelligent fault alarm system and other functions.
