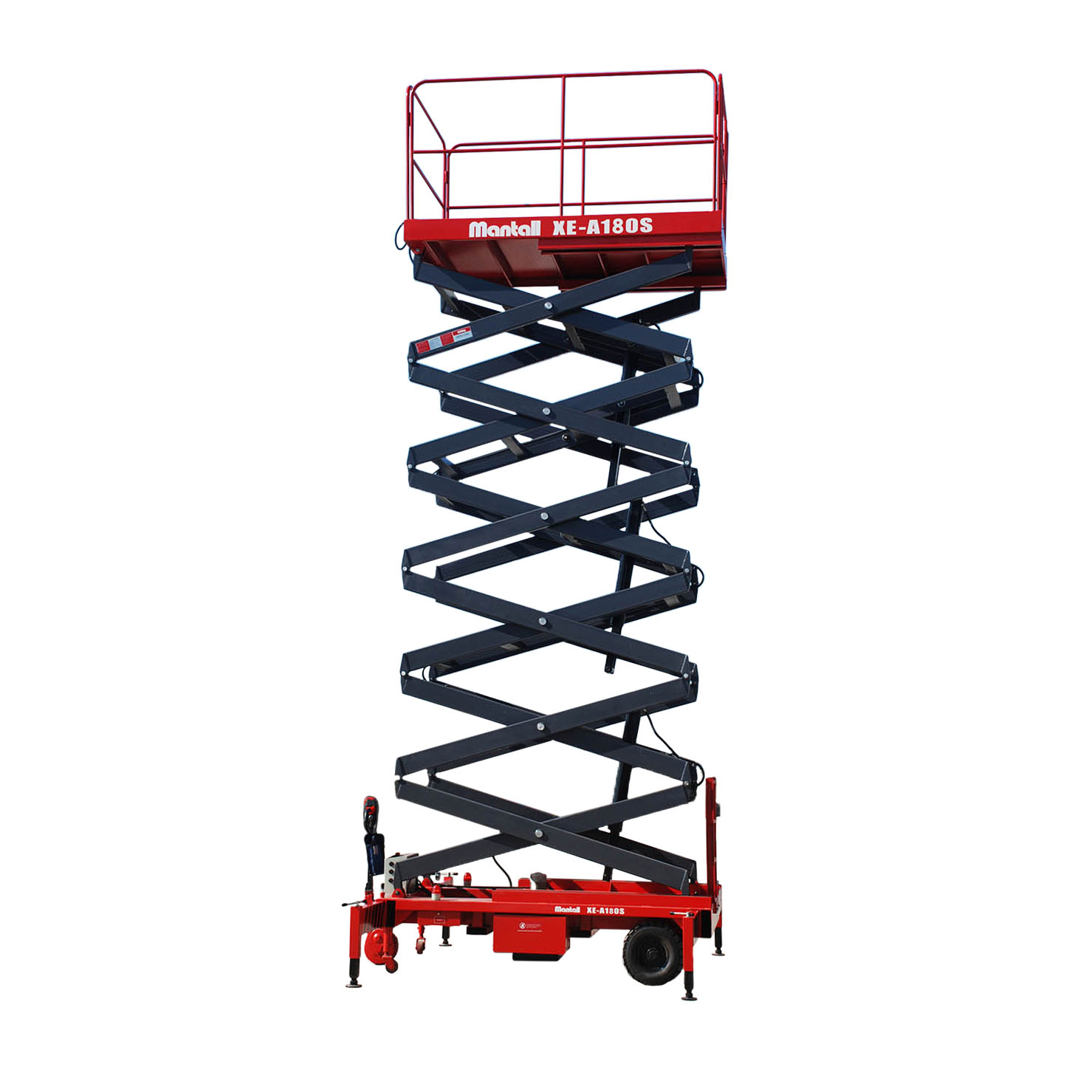

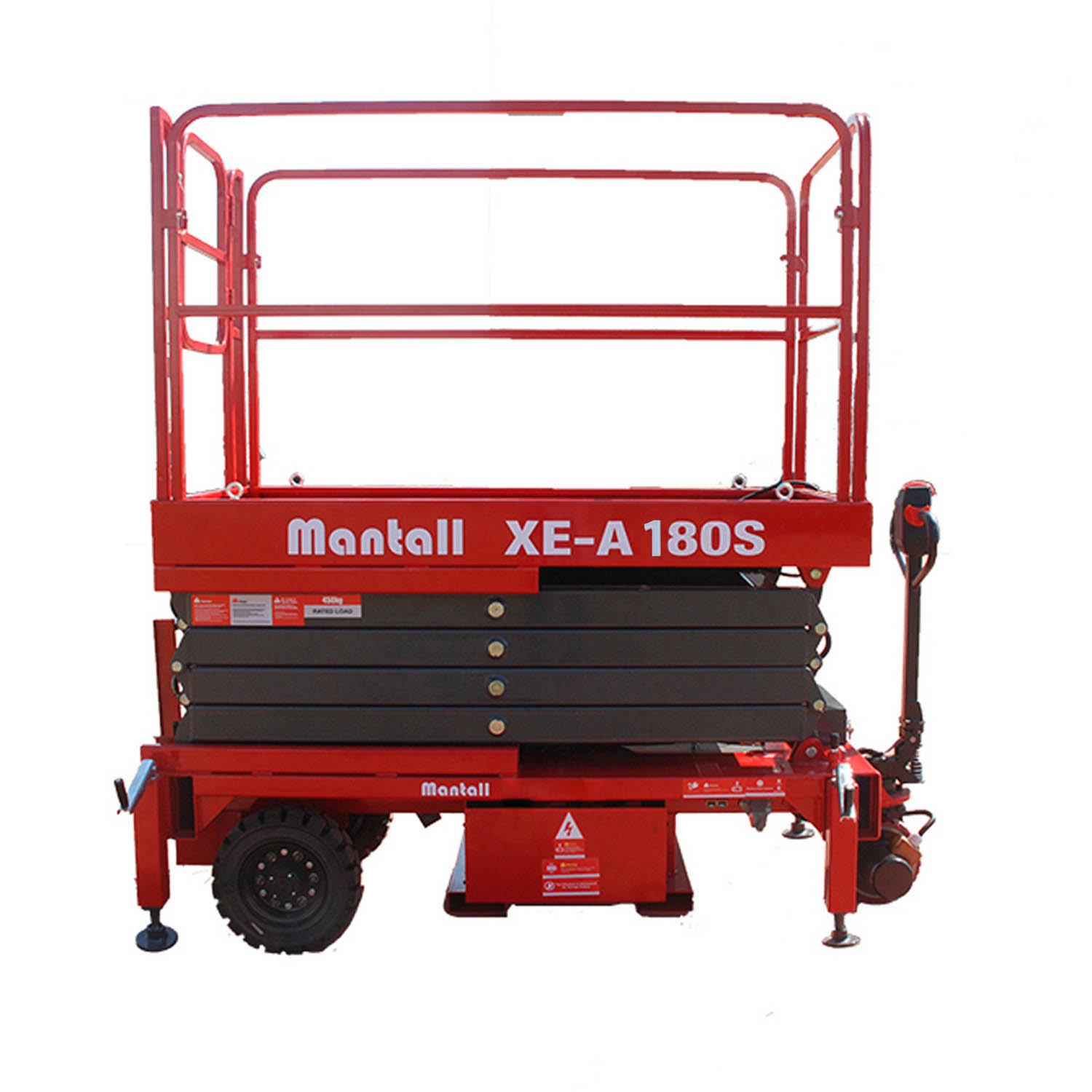

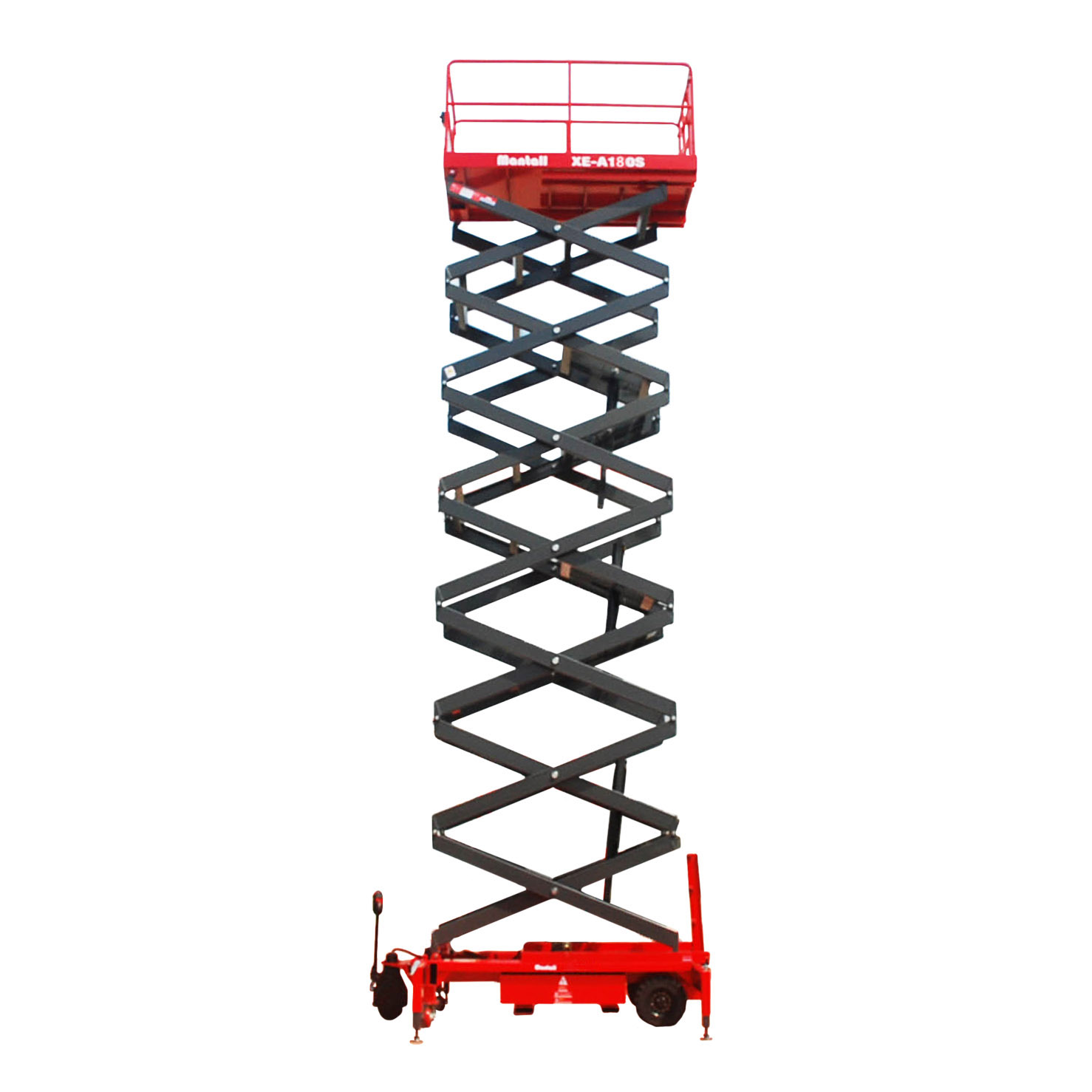

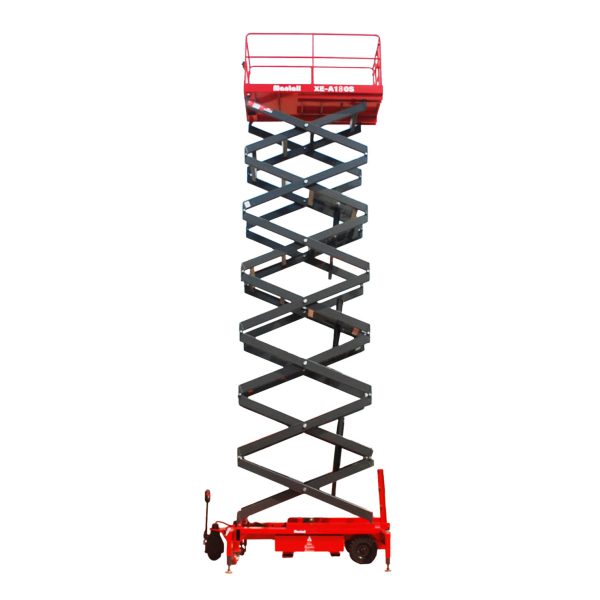

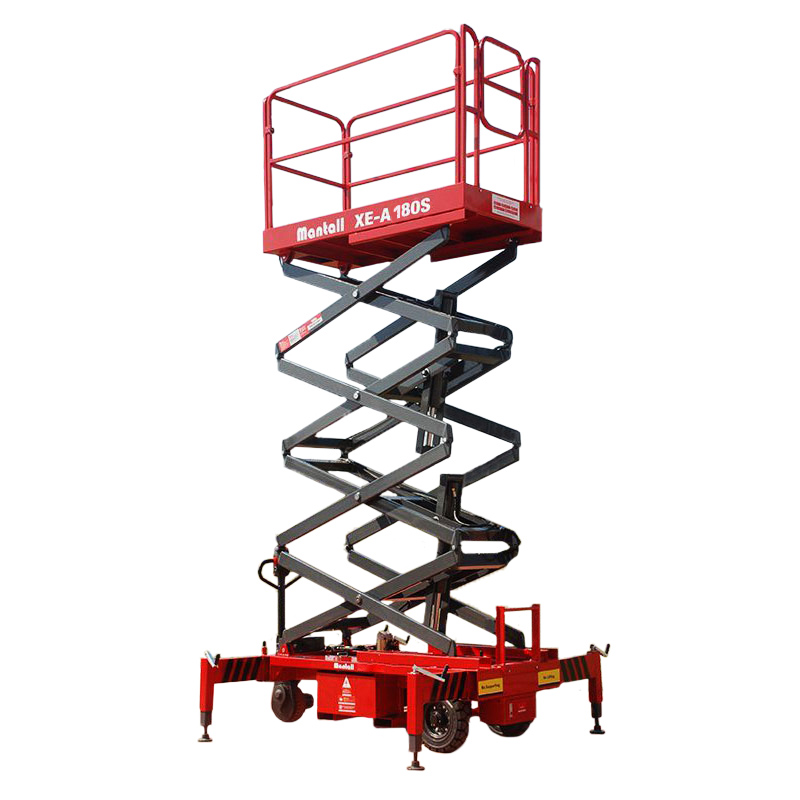

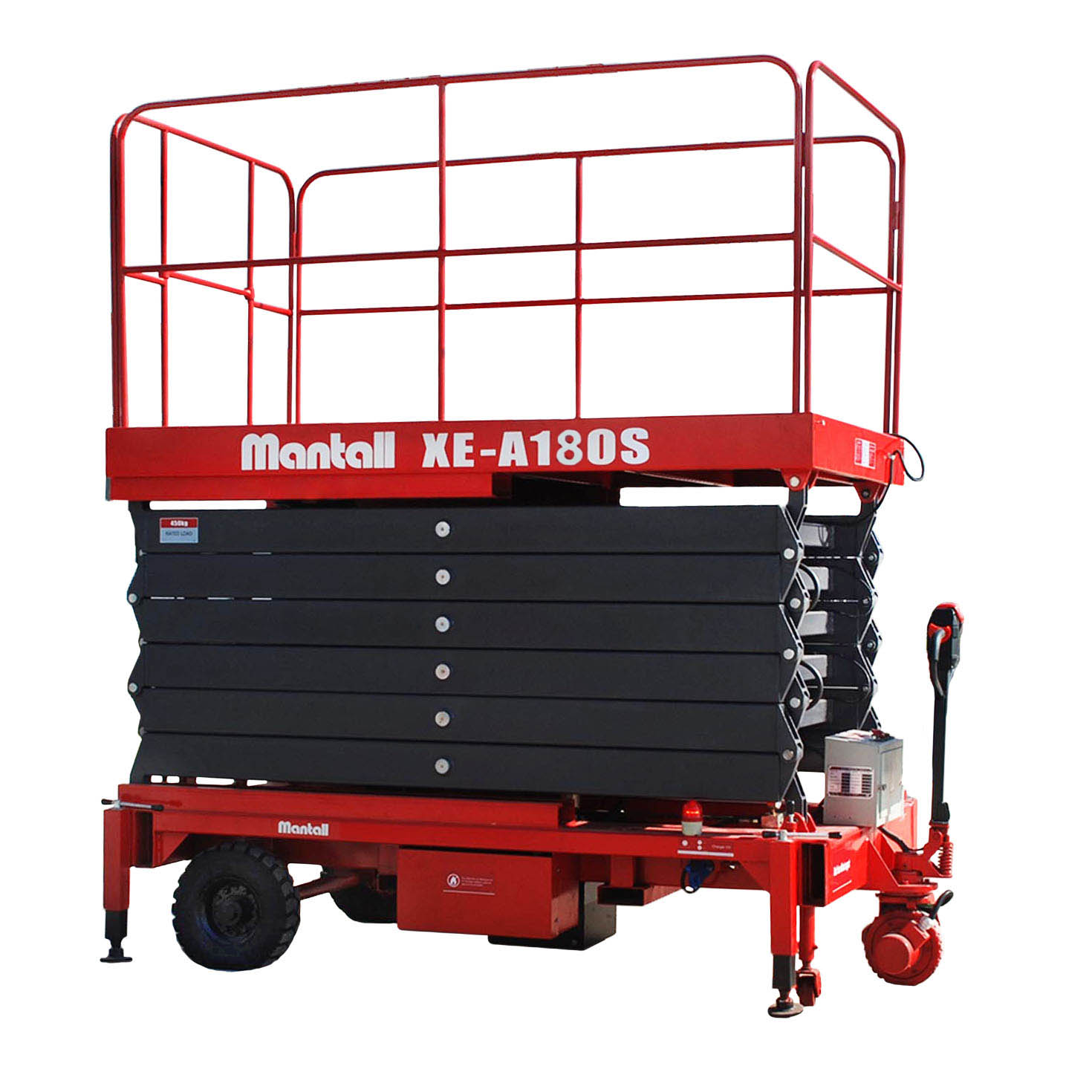

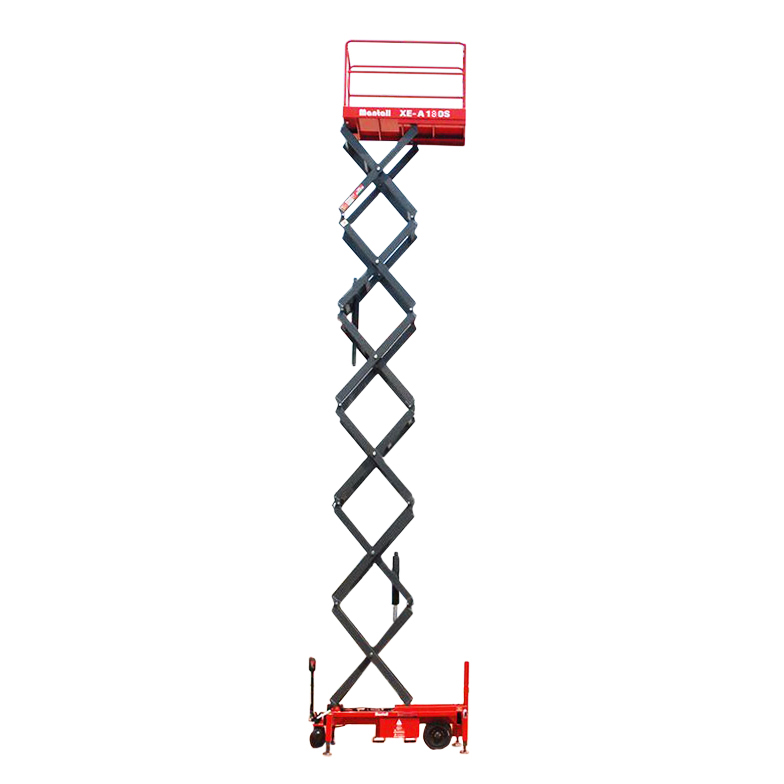

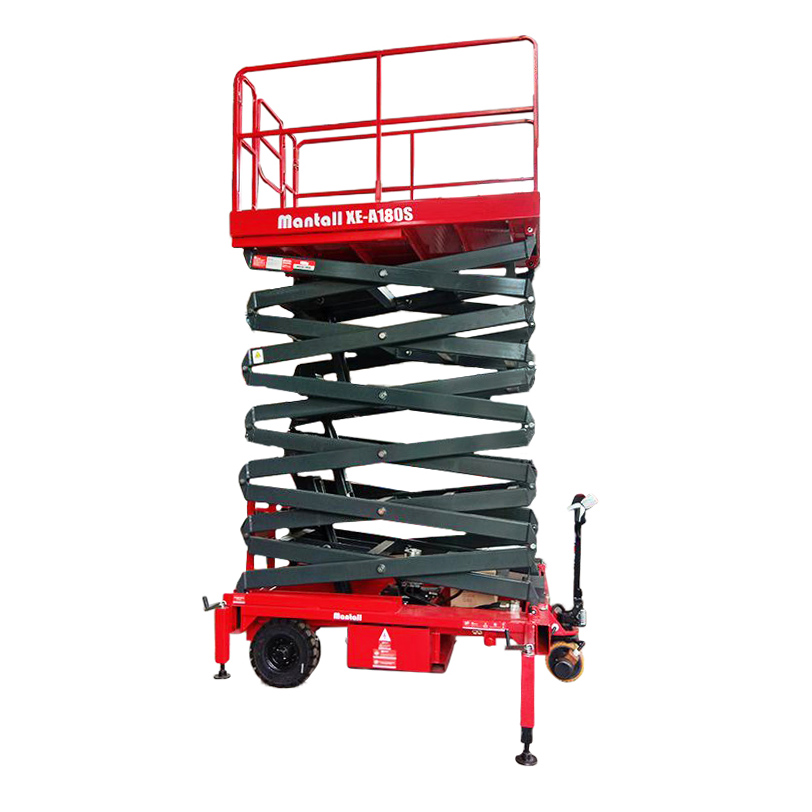

Mantall XE-A180S

Mantall XE-A series mobile electric scissor lifts are an eco-friendly solution to lift people and heavy loads to working heights of up to 18 meters. The quiet and zero-emissions operation makes the electric scissor lift suitable for both indoor and outdoor applications.

Send forespørsel
Working height max


Platform height max


Lift capacity

300 kg

Platform size ( L*W)

2.7*1.5 m

Stowed size(L*W*H)

3.37*1.75*2.1 m

Raising time

130 s

Traction speed

0-16.8 km/h

Lifting motor power

2.2*2 kW

Driving motor power

1.2 kW

Power source


Vekt 2900 kg
Transportmål 337 × 175 × 210 cm
Standard Features
  • Electric self-propelled, can operate by one person for drive and work in high position
  • Hydraulic line rupture protection device

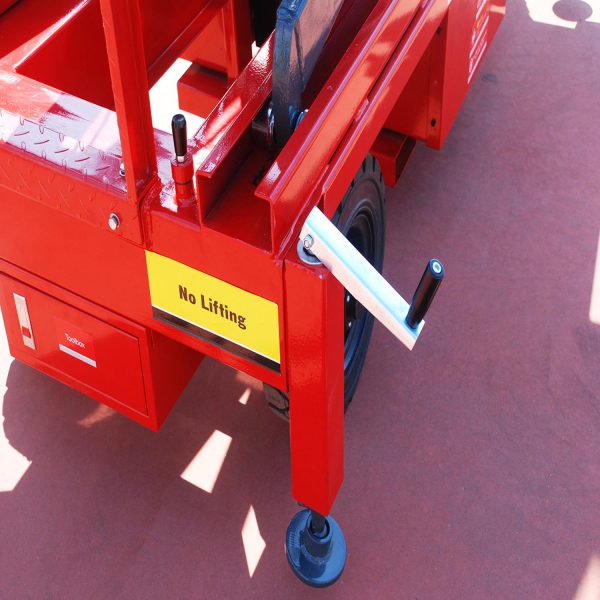

  • Screw support leveling device
  • Emergency stop button
  • Emergency lower down

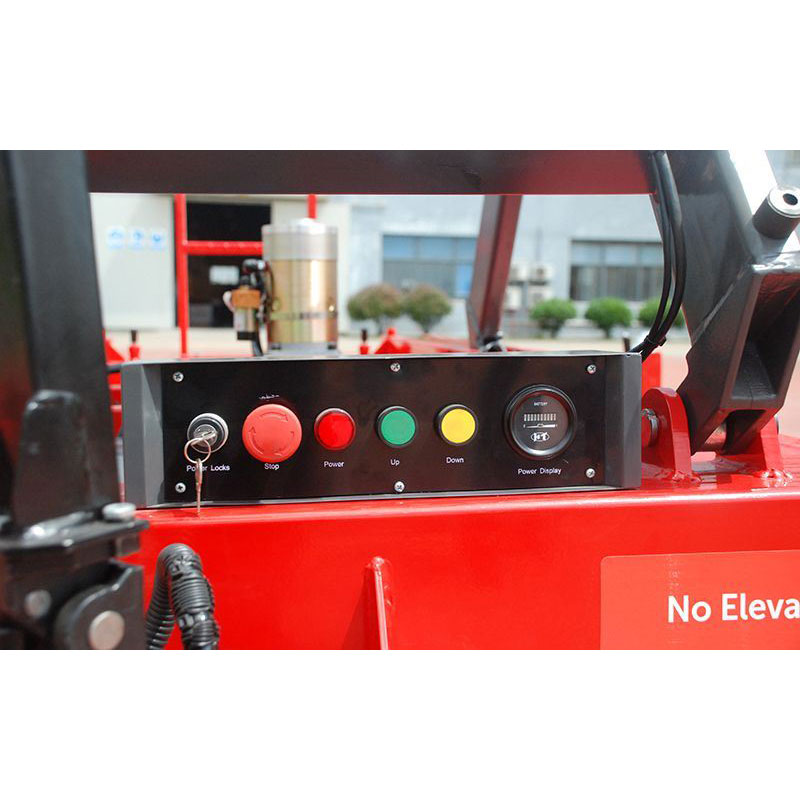

  • Rain-proof control box
  • Automatically battery charger
  • Extended Platform (below and included XEA130S model)

Function Description

  • This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
  • Strong driving power and fast traction speed
  • With on board diagnostic system, intelligent fault alarm system and other functions.
