| Working height max | 8m |
|---|---|
| Platform height max | 6m |
| Lift capacity | 450 kg |
| Platform size ( L*W) | 1.85*0.88 m |
| Stowed size(L*W*H) | 2.26*1.06*1.48 m |
| Raising time | 54 s |
| Traction speed | 0-16.8 km/h |
| Lifting motor power | 2.2 kW |
| Driving motor power | 0.75 kW |
| Power source | DC24V |
| Vekt | 740 kg |
| Transportmål | 226 × 106 × 148 cm |

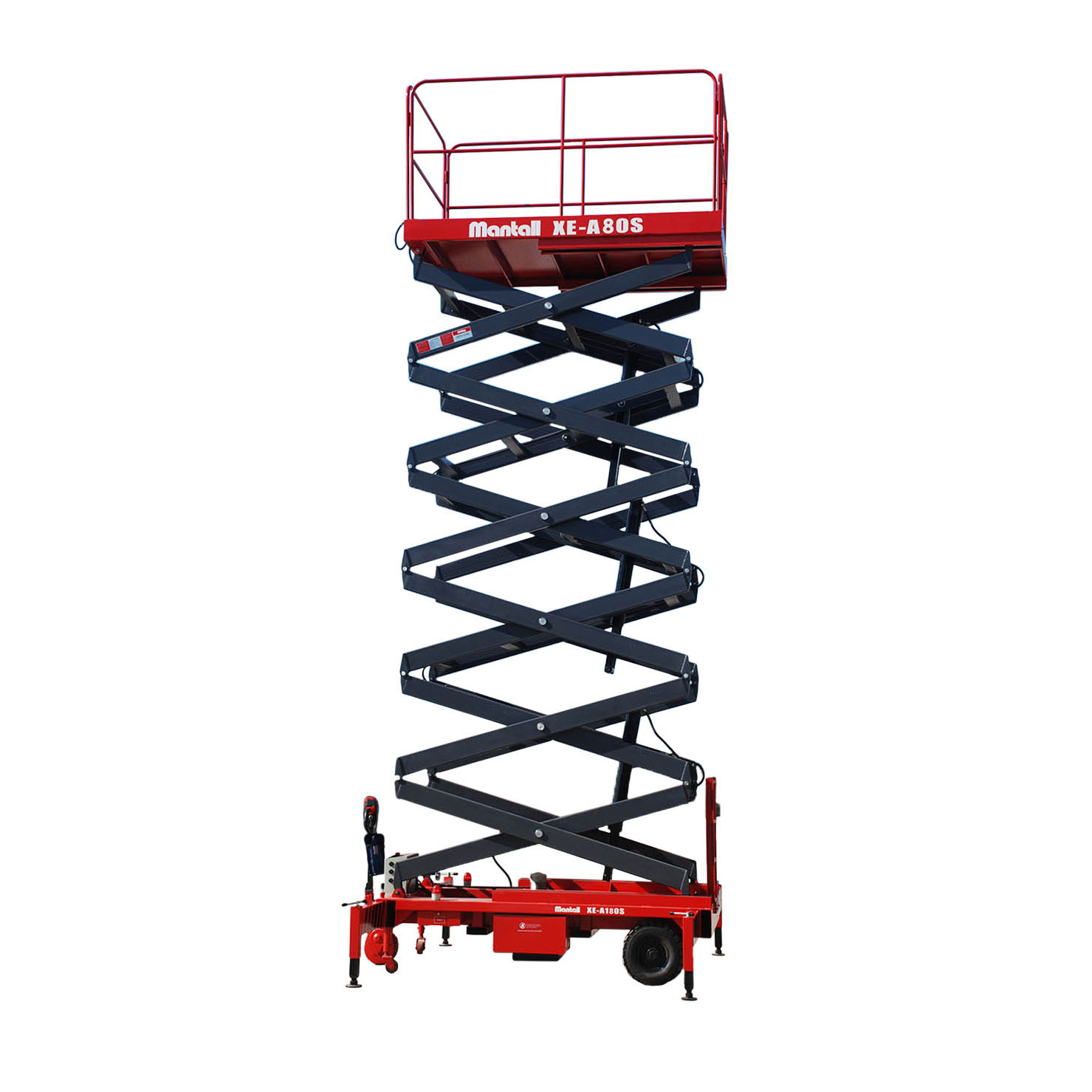

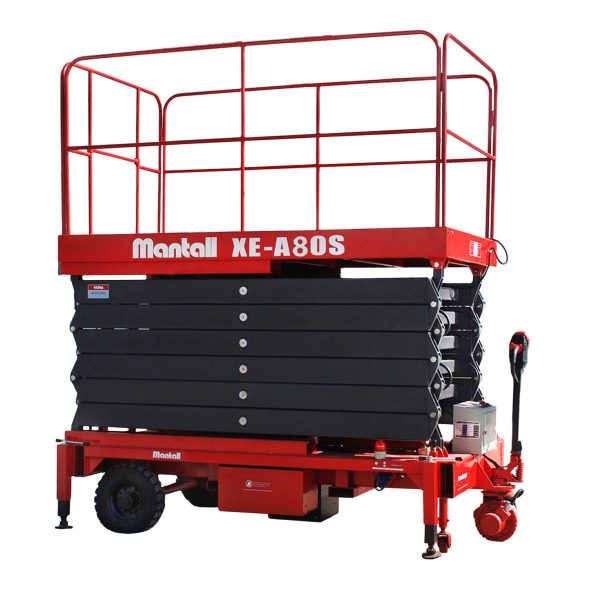

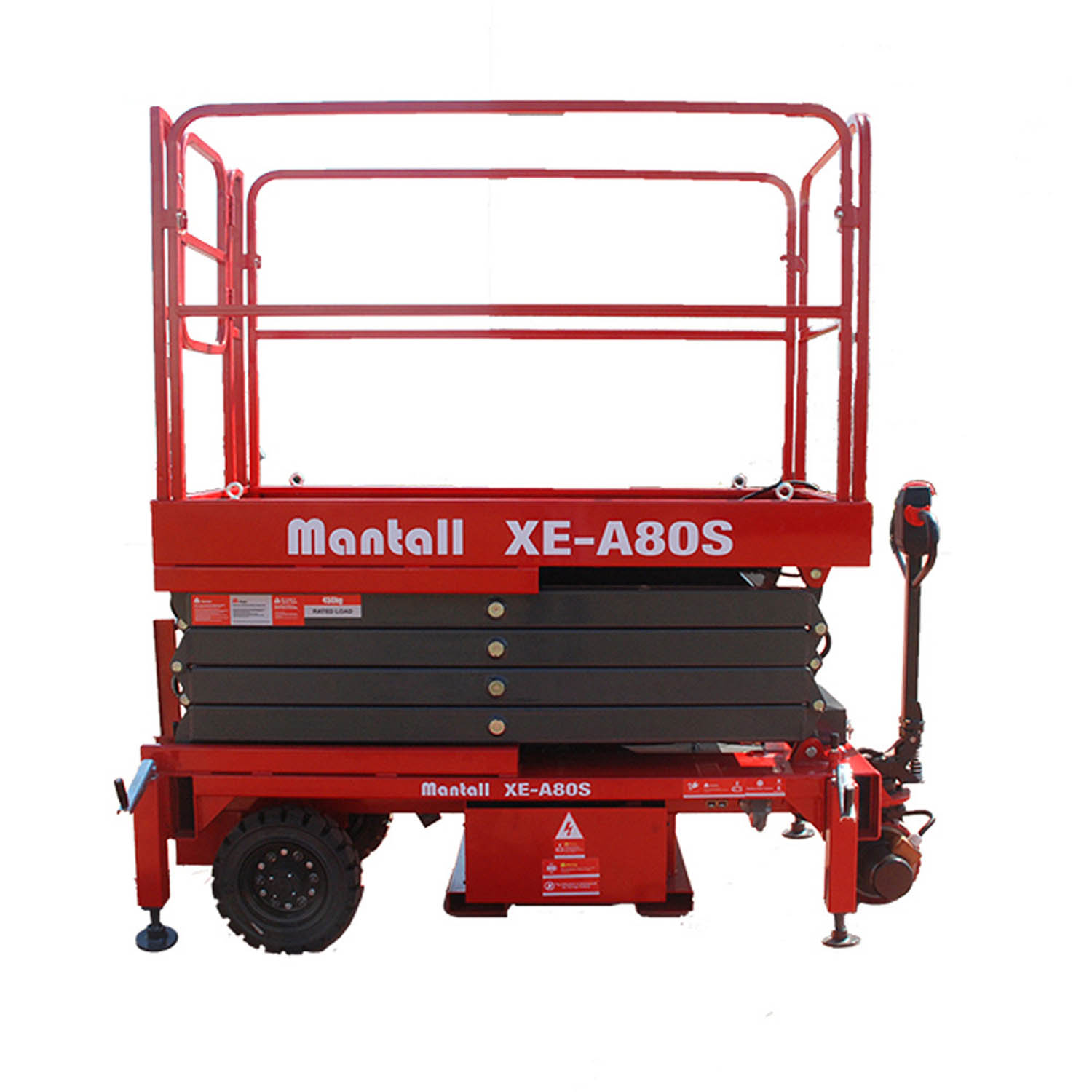

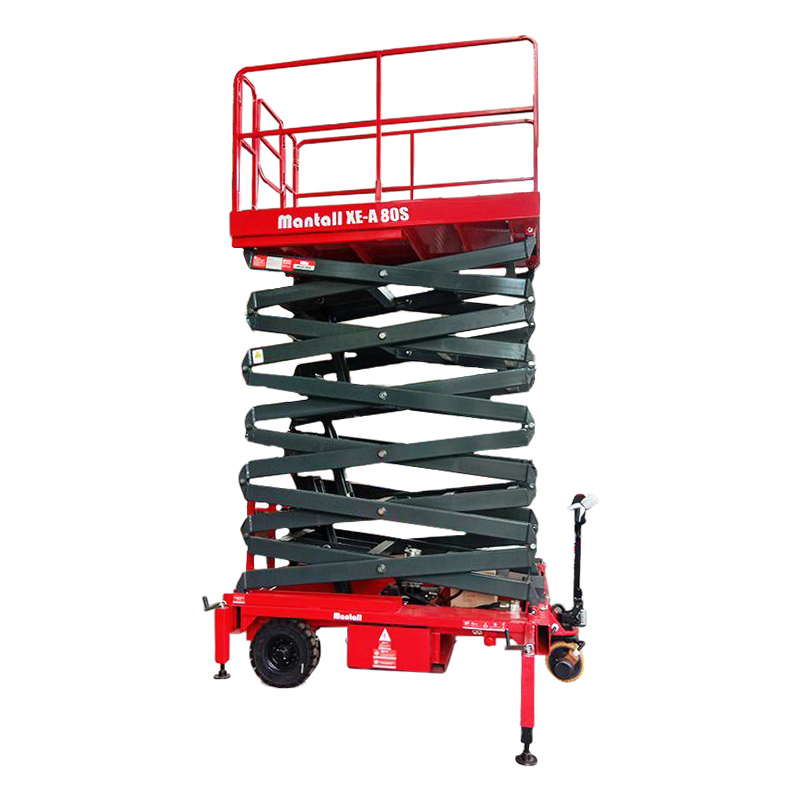

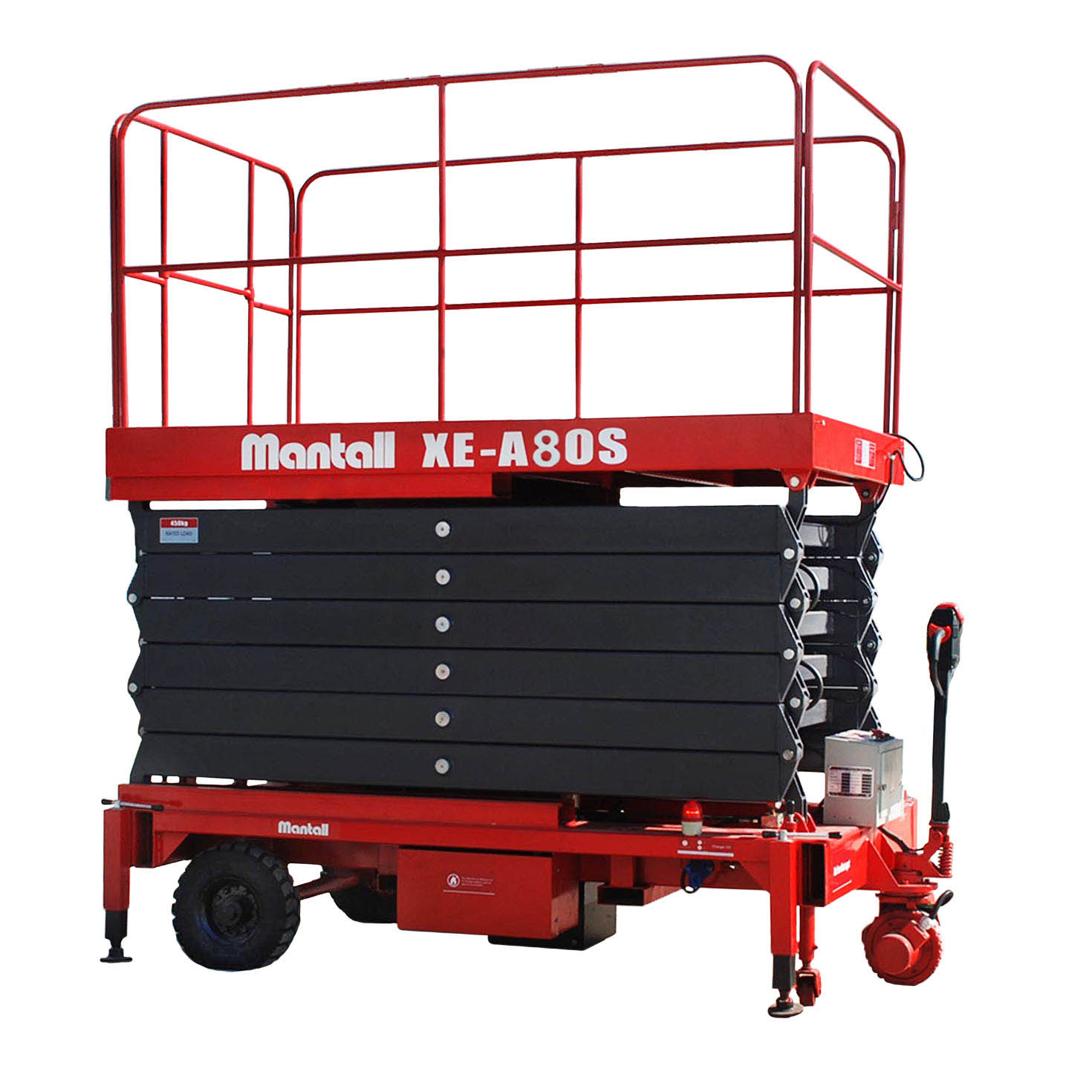

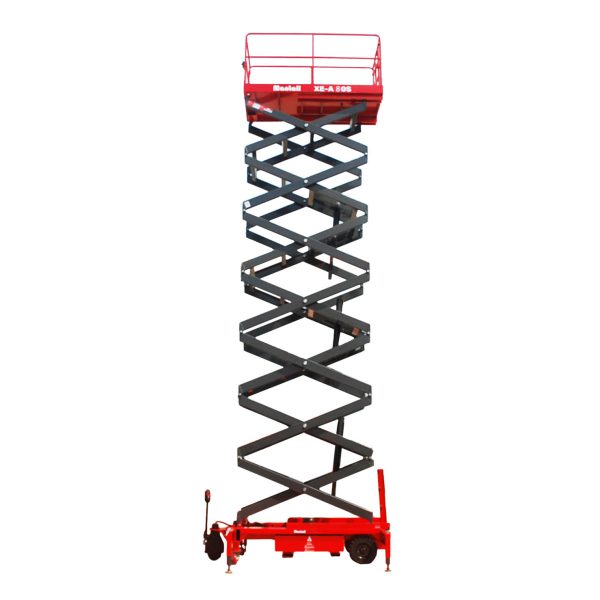

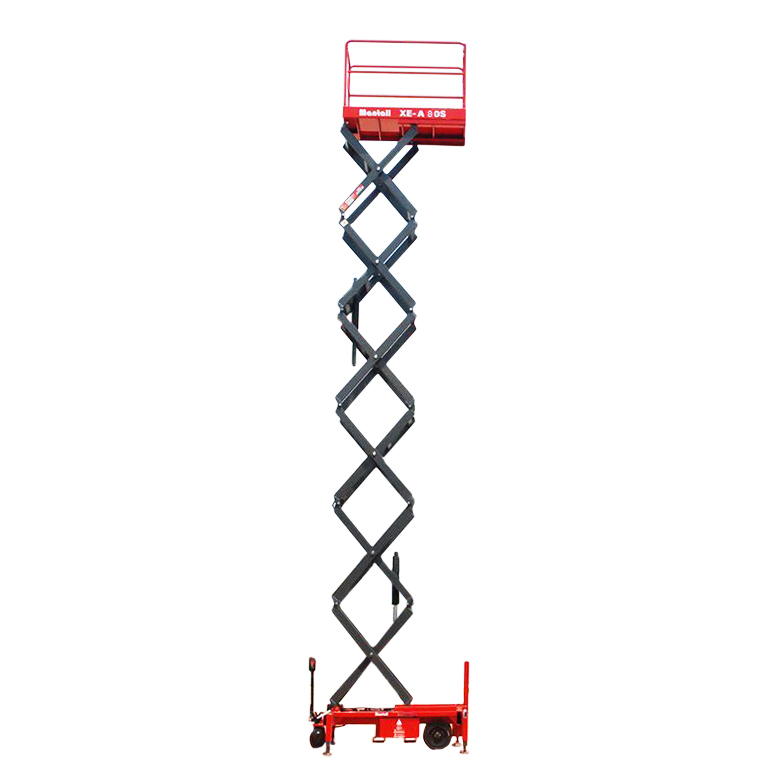

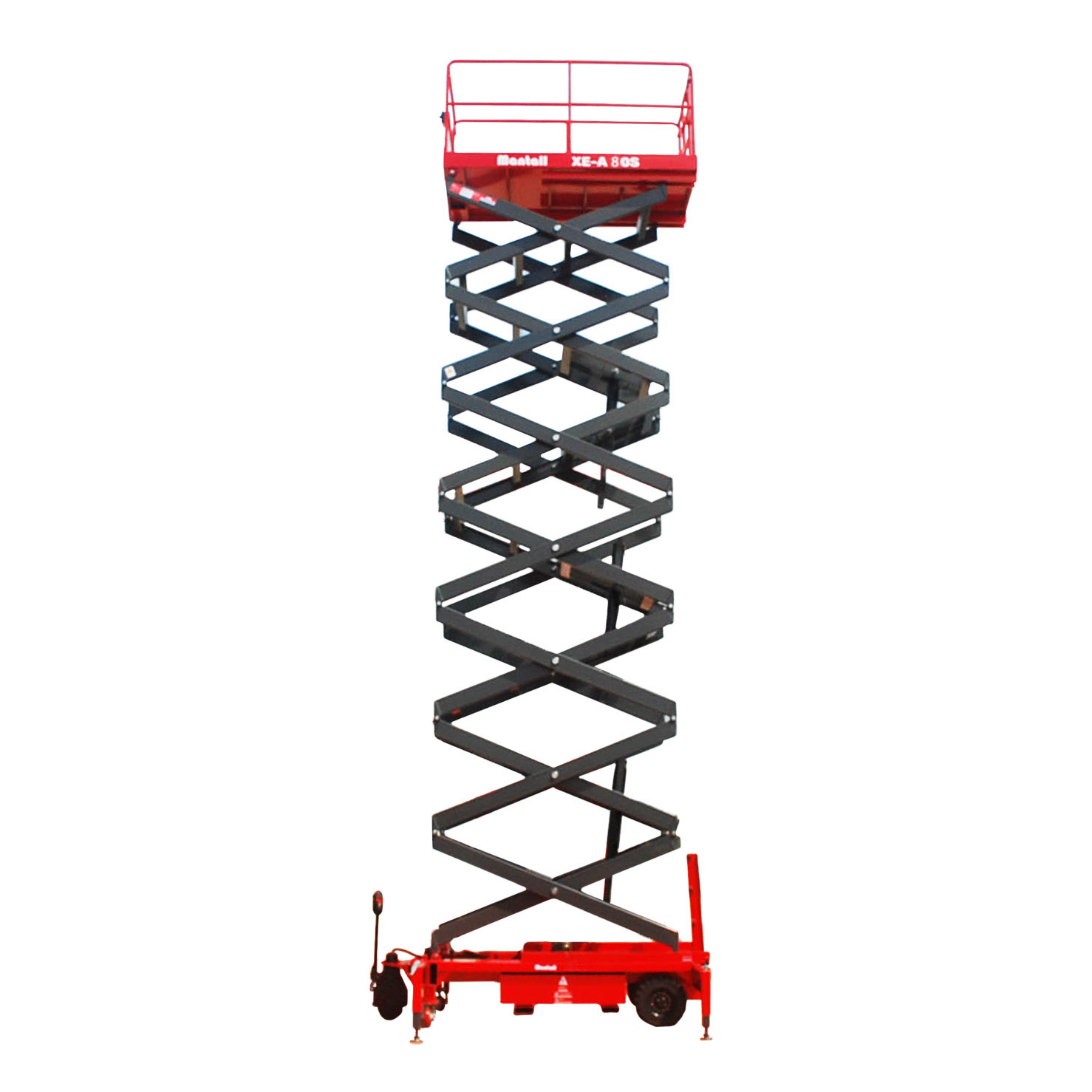

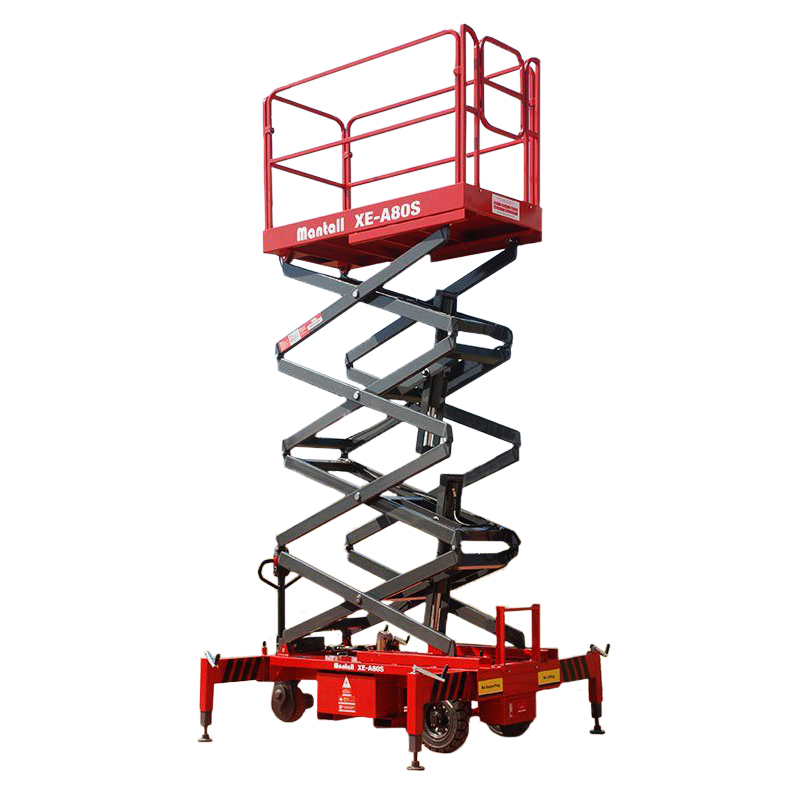

Mantall XE-A80S
Mantall XE-A series mobile electric scissor lifts are an eco-friendly solution to lift people and heavy loads to working heights of up to 8 meters. The quiet and zero-emissions operation makes the electric scissor lift suitable for both indoor and outdoor applications.
Standard Features
- Electric self-propelled, can operate by one person for drive and work in high position
- Hydraulic line rupture protection device
- Screw support leveling device
- Emergency stop button
- Emergency lower down
- Rain-proof control box
- Automatically battery charger
Optional
- Extended Platform (below and included XEA130S model)
Function Description
- This crawler electric scissor lift has the characteristics of zero emission, no noise, and has strong climbing function.
- Strong driving power and fast traction speed
- With on board diagnostic system, intelligent fault alarm system and other functions.
