| Working height max | 18 m |
|---|---|
| Platform height max | 16 m |
| Lift capacity | 300 kg |
| Platform size ( L*W) | 2.7*1.5 m |
| Stowed size (L*W*H) | 3.1*1.75*2.1 m |
| Raising time | 130 s |
| Lifting motor power | 3 kW |
| Tires | Ф500mm-8 Pneumatic tires |
| Power source | AC220V/380V |
| Vekt | 2680 kg |
| Transportmål | 310 × 175 × 210 cm |

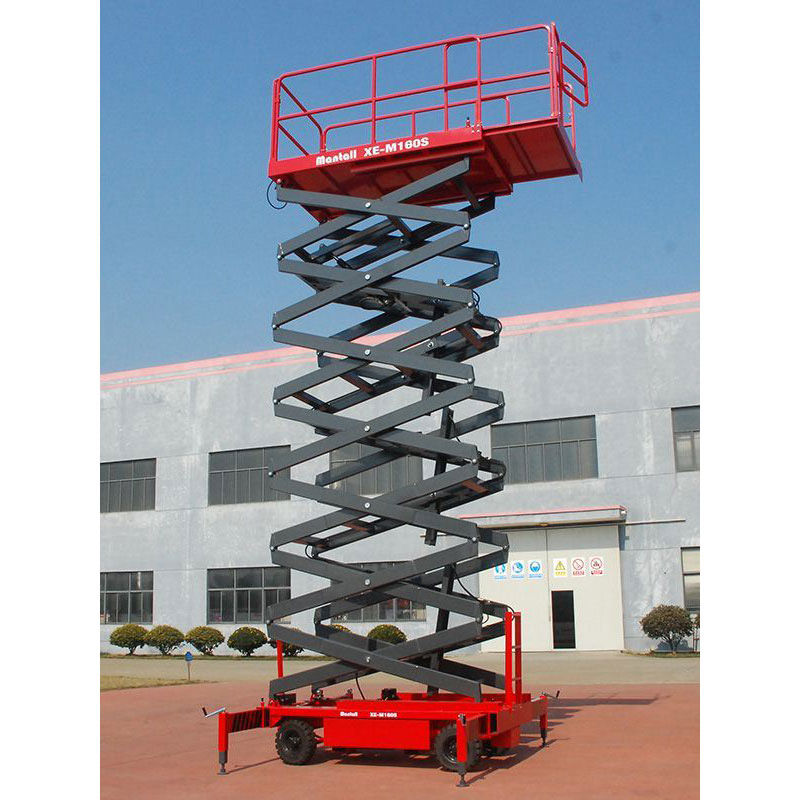

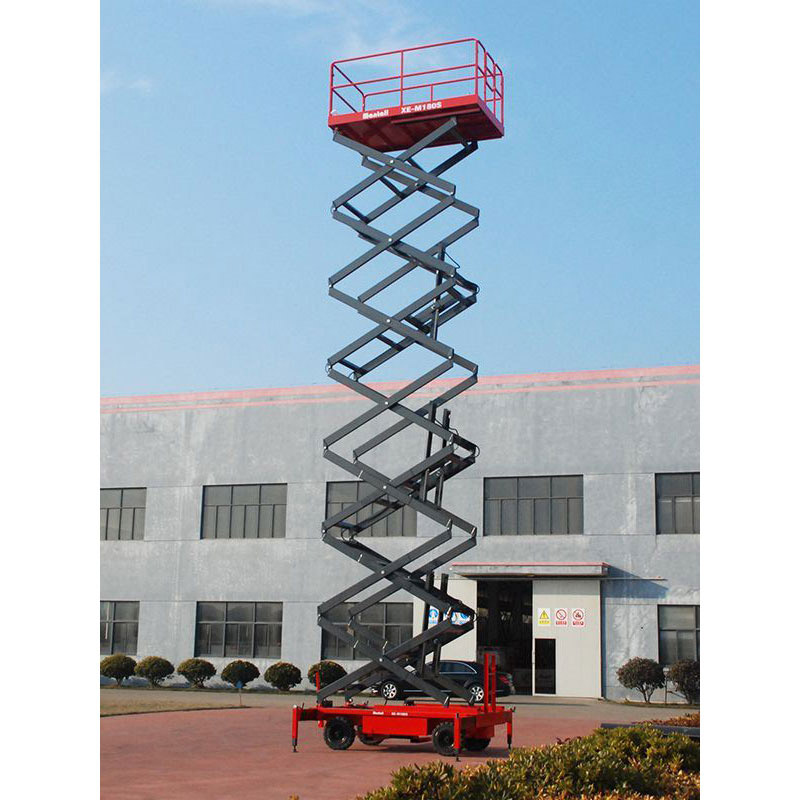

Mantall XE-M180S
Mantall XE-M series mobile electric scissor lifts are an eco-friendly way to elevate workers and heavy loads to working heights of up to 18 meters. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.
Standard Features
- Hydraulic line rupture protection device
- Screw support leveling device
- Emergency stop button
- Emergency lower down
- Rain-proof control box
Optional
- Power: DC 24V/48V
- Extended platform(below and included XEM130S model)
- Rubber solid tires
