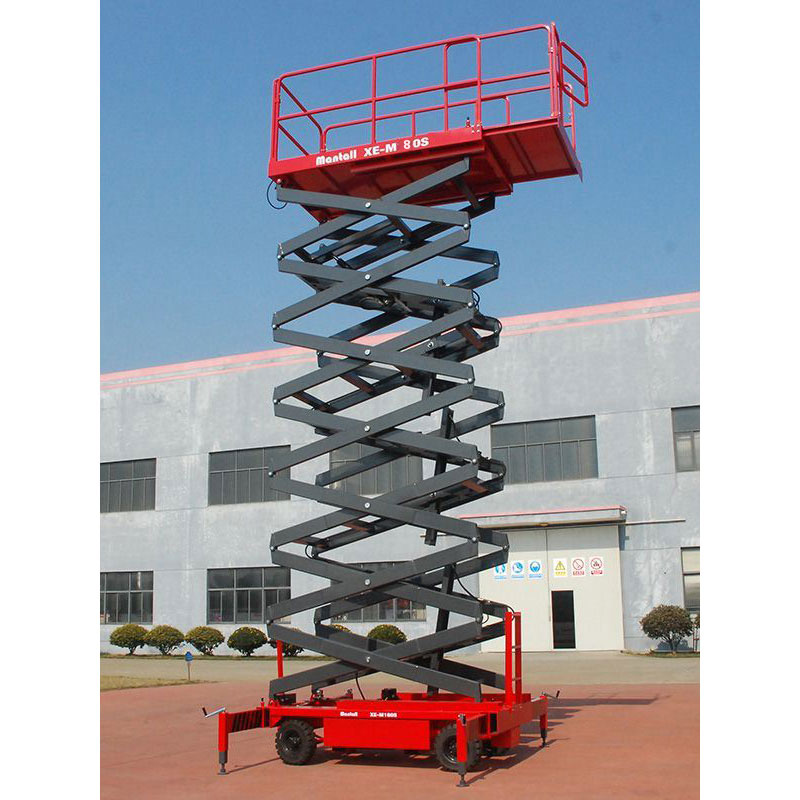

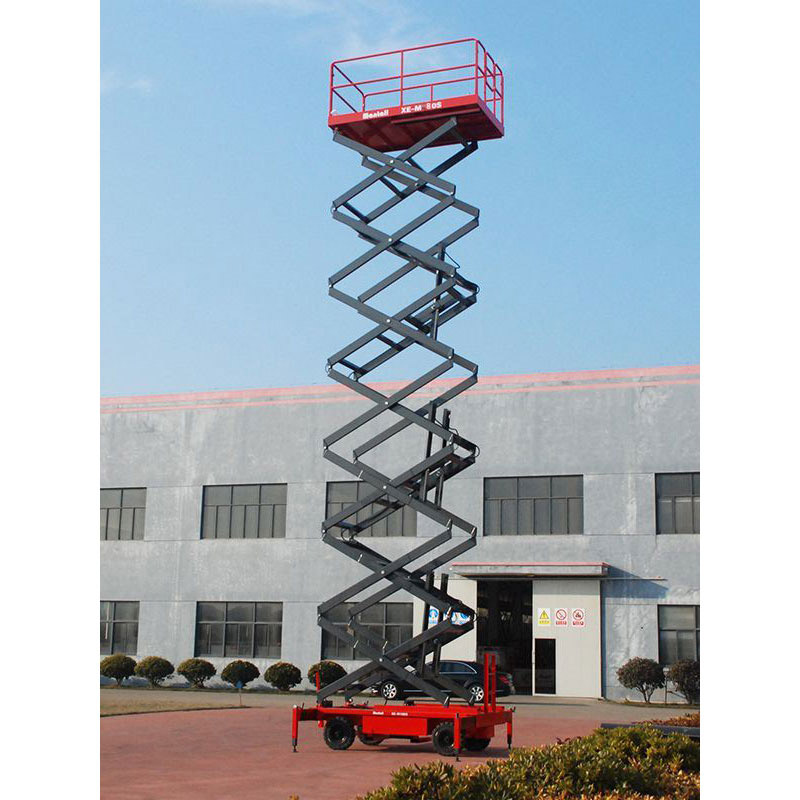

Mantall XE-M80H

Mantall XE-M series mobile electric scissor lifts are an eco-friendly way to elevate workers and heavy loads to working heights of up to 8 meters. Due to the quiet and zero-emissions operation, these mobile electric scissor lifts are suited for use in both indoor and outdoor applications.

Send forespørsel
Working height max

8m

Platform height max

6m

Lift capacity

1000 kg

Platform size ( L*W)

1.8*1 m

Stowed size (L*W*H)

2.2*1.26*1.7 m

Raising time

80 s

Lifting motor power

2.2 kW

Tires

Ф500mm-8 Pneumatic tires

Power source

AC220V/380V

Vekt 950 kg
Transportmål 220 × 126 × 170 cm
Standard Features
  • Hydraulic line rupture protection device
  • Screw support leveling device
  • Emergency stop button
  • Emergency lower down
  • Rain-proof control box
Optional
  • Power: DC 24V/48V
  • Extended platform(below and included XEM130S model)
  • Rubber solid tires
