Mantall HZ140/HZ140J – 14m

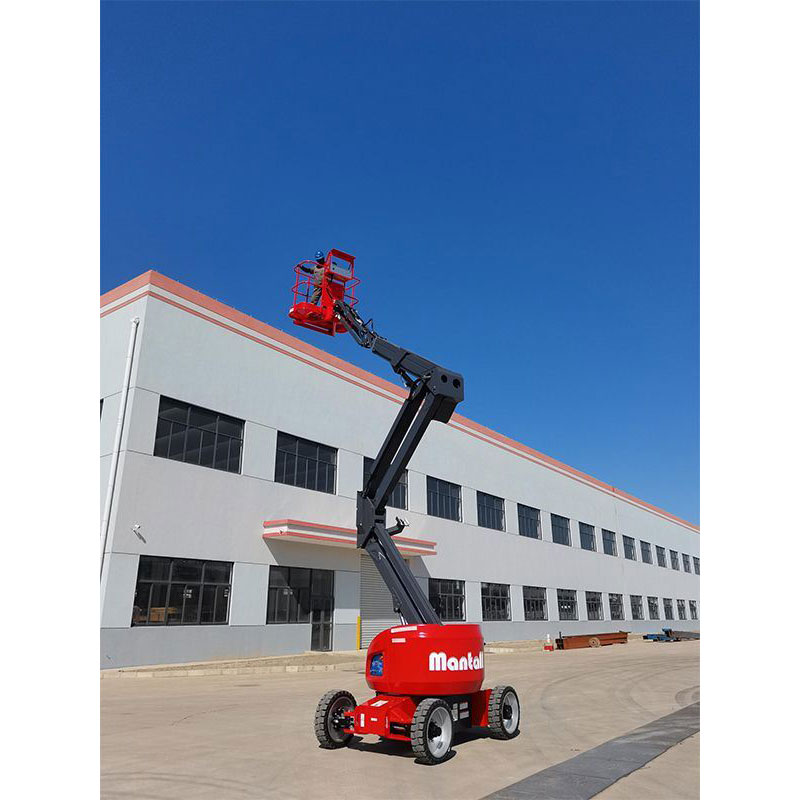

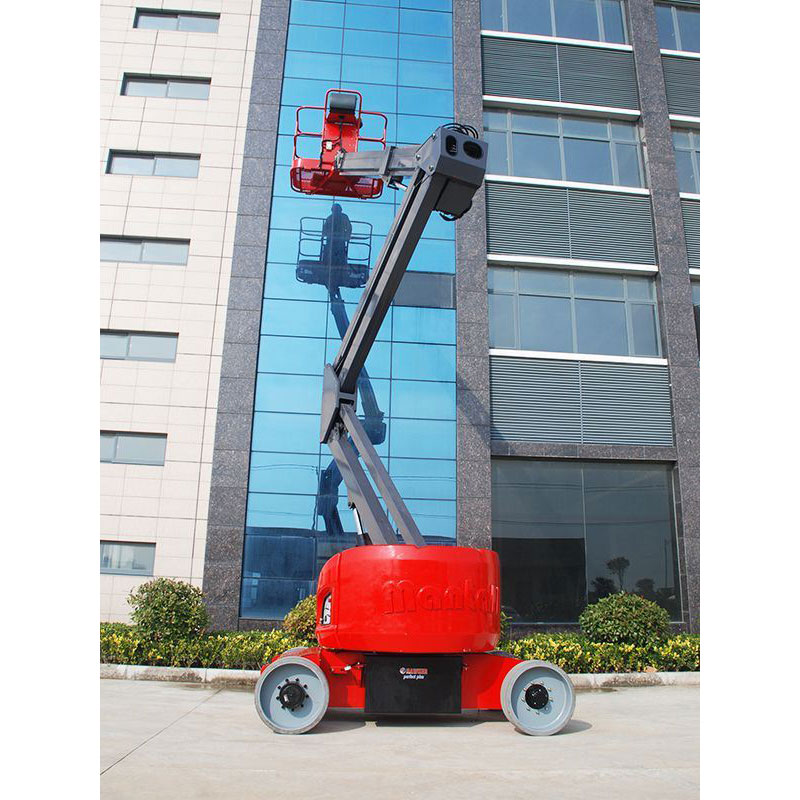

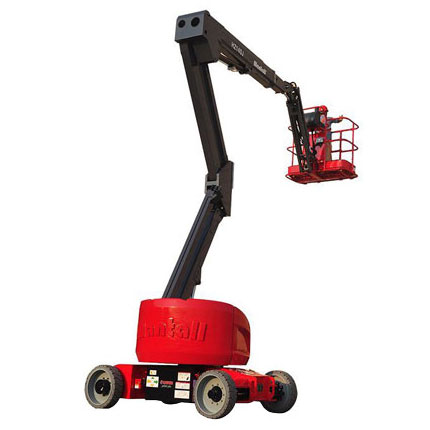

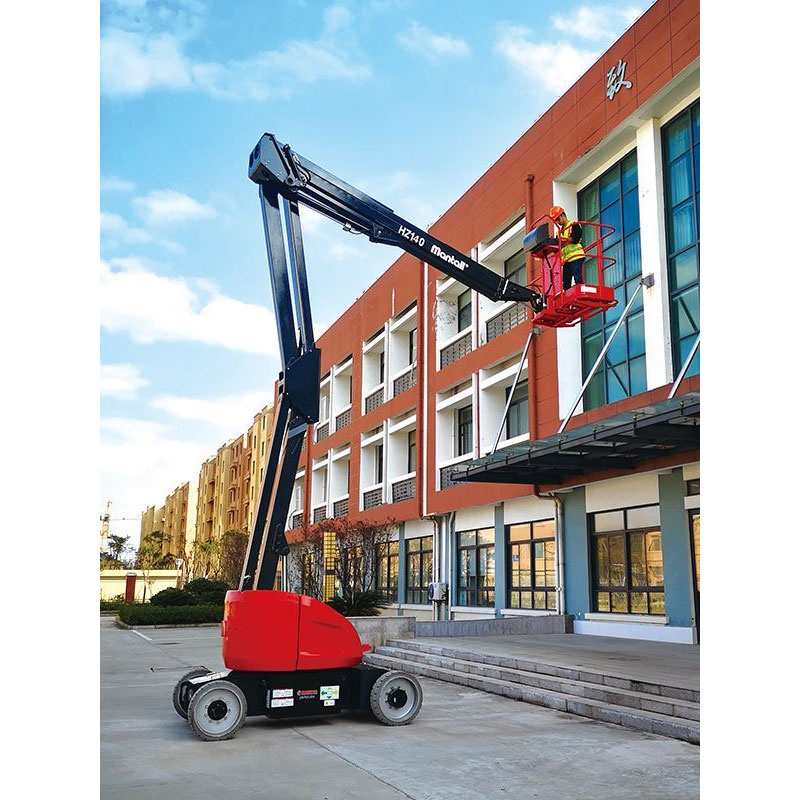

Mantall HZ140J articulated boom lift can reach a working height of 14m. Equipped with 360-degree rotating turntable, electro-hydraulic proportional control, and CAN intelligent control system, it is easier to maintain and upgrade.

HZ140J also allows the operator to perform multiple movements simultaneously, enabling multi-directional precise positioning and lifting operations, enabling workers to access hard-to-reach places and avoid obstacles. HZ140J articulated boom lift is zero emission and suitable for indoor applications.

Send forespørsel
Max. working height m

14m
Max. platform height m

12m
Max. outreach m

7.04/7.259m
Max. up and over clearance

6.33m
Max. lift capacity KG

230kg
Platform size B*C*A

1.5m×0.76m×1.1m
Height-stowed D

2.00m
Length-stowed E

5.36/6.17
Width F

1.75m
Wheelbase G

2.00m
Ground clearance H

0.14m
Turntable rotation

360°discontinuously
Turntable tailswing

0
Platform rotation

180°
Jib Swing

0/140°(HZ140J only)
Platform Level

Hydraulic leveling
Drive speed, stowed

3.7km/h
Drive speed, extended

1.0km/h
Gradeability

30%
Max. tilt angle

3°
Max. lateral force N

400N
Max. wind speed allowed

12.5m/s
Min. turning radius-(inside)

2.3m
Min. turning radius-(outside)

3.5m
Drive wheels number

2
Steering wheel number

2
Controls

Electrical hydraulic proportional control
System voltage

DC24V
Hydraulic tank capacity

35L
Tire size

600*190
Power

DC48V/320Ah
Total weight

5.6T/6.34T
Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor
Optional
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
