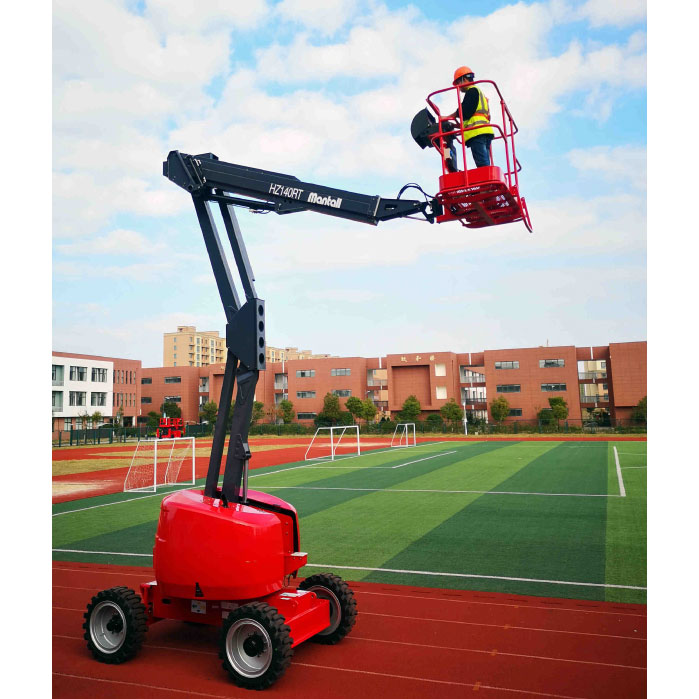

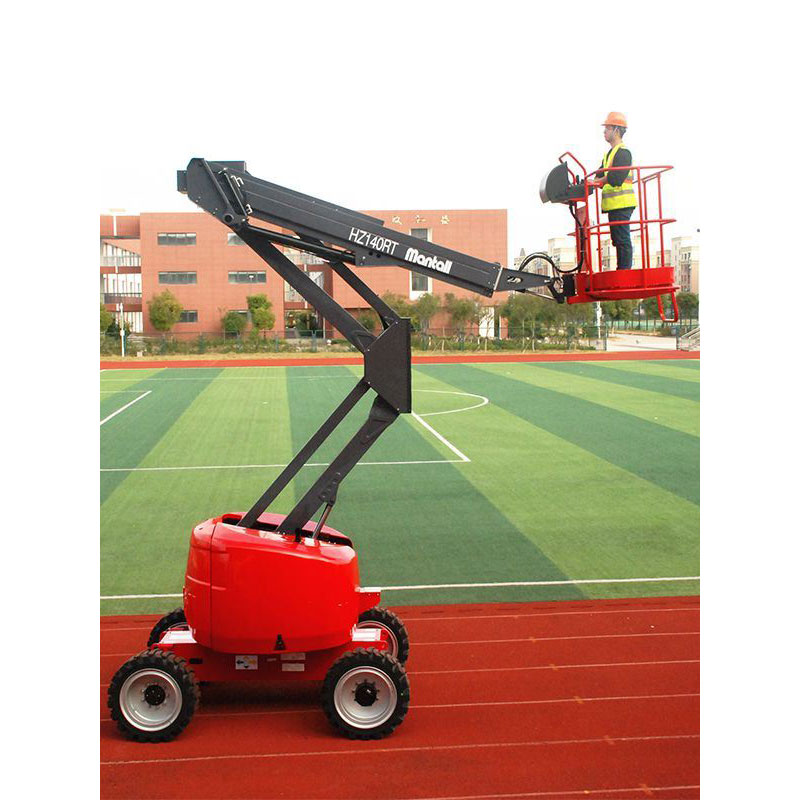

Mantall HZ140RT/HZ140JRT – 14m

Our HZ140RT/HZ140JRT self-propelled articulated boom lifts are designed to support working heights up to 14 meters, they are suited for multi-directional precise positioning and lifting operations and enable workers to reach work areas that are difficult to access while avoiding obstructions.

The self-propelled articulated boom lift makes it easier for workers to accomplish their tasks because of its 360-degree rotating turntable and working platform that can move up, down, left and right. It is also perfect for indoor applications and can protect flooring thanks to its ultra-quiet non-marking tires.

Our HZ140RT/HZ140JRT self-propelled articulated boom lifts have a fully proportional Hall effect joystick and CAN intelligent control system, making maintenance and upgrading simpler while performing multiple actions simultaneously.

Send forespørsel
Max. working height

14m
Max. platform height

12m
Max. outreach

7.01m/7.08m
Max. up and over height m

6.27m/6.5m
Max. lift capacity

230kg
Platform size B*C*A

1.8m×0.76m×1.17m
Height-stowed D

2.30m
Length-stowed E

5.63m/6.58m
Width F

2.00m
Wheelbase G

2.00m
Ground clearance H

0.36m
Turntable rotation

360° discontinuously
Turntable tailswing

0
Platform rotation

0/180°
Jib swing

0/140°(HZ140JRT only)
Platform level

Hydraulic level
Drive speed, stowed

3.0km/h (7.0km/h 4wd
Drive speed, extended

1.0km/h
Gradeability

30%（45%4WD
Drive wheels number

2/4WD
Steering wheel number

2
System voltage

DC12V
Controls

Electrical proportional control
Min. turning radius-(outside)

4.0m
Min. turning radius-(inside)

2.30m
Max. lateral force

400N
Max. tilt angle

3°
Max. wind speed allowed

12.5m/s
Hydraulic tank capacity

70L
Fuel tank capacity

65L
Tire size

33*12-20
Power

Perkins 404D Diesel Engine
Total weight

5.6T/6.3T
Standard Features
  • Self-leveling platform
  • Hydraulic rotation platform
  • Hall effect fully proportional controls
  • Driving confirm
  • AC wiring to platform
  • Horn
  • Hour meter
  • Tilt alarm
  • Positive traction drive
  • Dual Speed motor
  • Emergency pump
  • CAN intelligent control
  • Overload sensor

Optional

  • 2.4m platform
  • Platform swing gate
  • Platform alternate leverage
  • Airline to platform
  • Hydraulic oil cooler
  • Hostile environment packages
  • Anti-crash air packages
  • Tool tray
  • Alarm packages
  • Platform work lights
