Mantall XDW150RT -15m

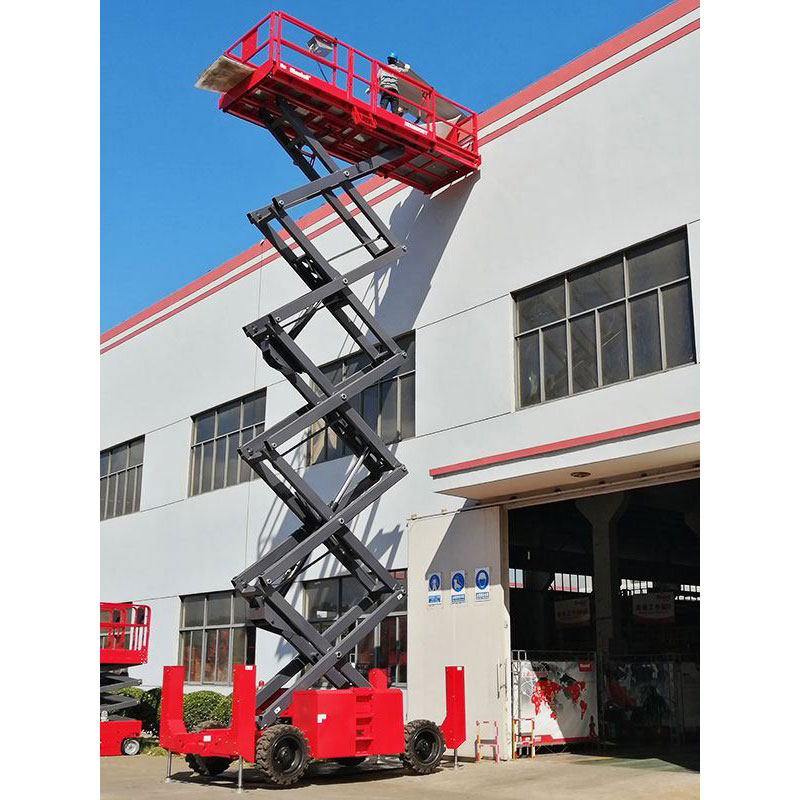

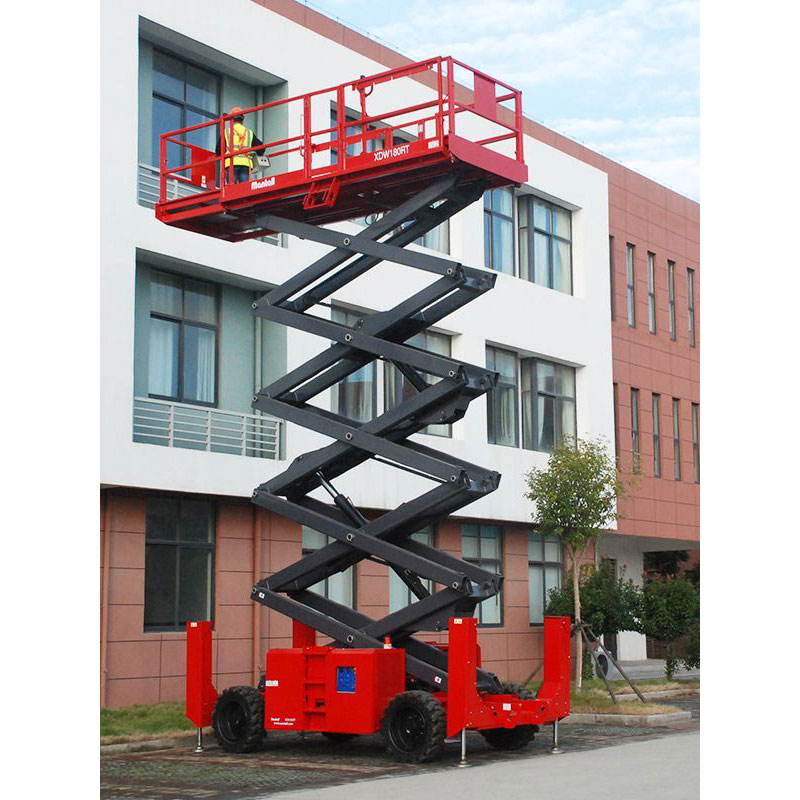

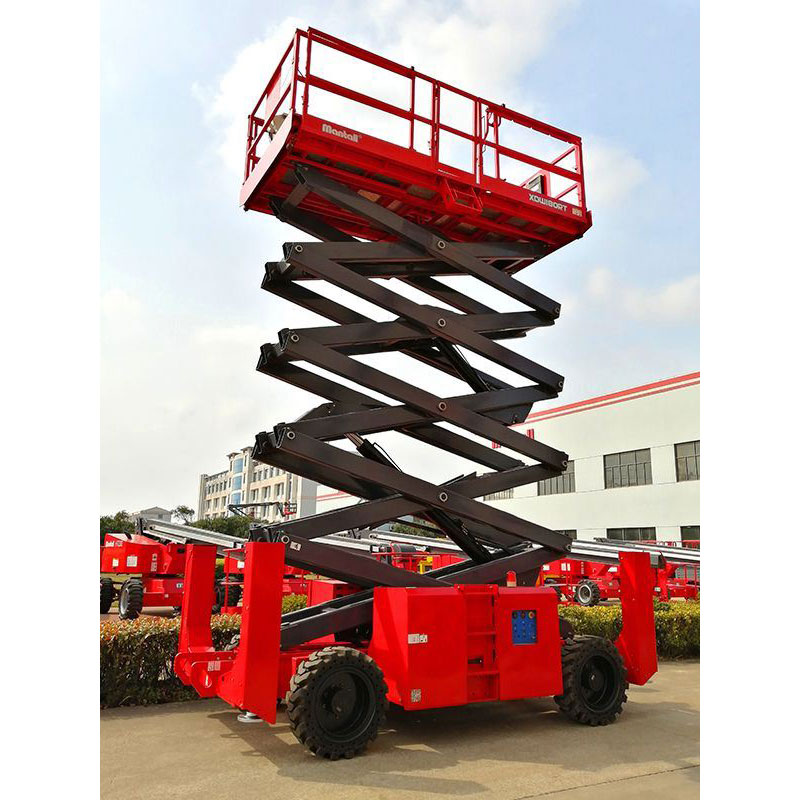

Mantall XDW150RT Rough Terrain Scissor Lift has a maximum working height of 15 meters.

It is equipped with a diesel engine, a 6.3-meter-long double extension platform. XDW150RT can carry up to 3 workers with a maximum load of 680 kg.

With four-wheel drive and 45 percent gradeability, it enables workers to get a variety of jobs done on rough terrain. XDW150RT rough terrain scissor lift is capable of safely lowering to the ground without power source.

Send forespørsel
Working height max H1


Platform height max H2

13 m

Platform extension size

1.2 m

Lift capacity with single extension

680 kg

Lift capacity with double extension

570 kg

Lifting capacity on the extension

230 kg

Dimension of the platform B*C*A

3.9*1.9*1.15 m

Platform length- single extended K

5.1 m

Platform length- double extended K

6.3 m

Platform skirting board height L

0.15 m

Overall length and width E*F single extended

4.47*2.3 m

Overall length and width E*F double extended

3.98*2.3 m

Overall length and width E*F With Outriggers

4.88*2.3 m

Height stowed D

2.99 m

Height-guardrails folded M

2.19 m


2.97 m

Ground clearance

0.32 m

Turning radius-inside

2.72 m

Turning radius-outside

5.89 m

Raising time/Lowering time

68/50 s

Drive speed-stowed

5 km/h

Drive speed-raised

1 km/h

Drive height

9.6 m



Outrigger level ability-front to back

Outrigger level ability-side to side



Control Proportional


4-wheel drive

Power source


Hydraulic tank capacity

115 L

Feul tank capacity

115 L

Max. platform occupancy

3 pers

Tire size(mm)

33*12-20 in

Vekt 6950 kg
Transportmål 488 × 230 × 299 cm
Standard Features
  • Foldable guardrail
  • Diagnostic system
  • AC wiring to platform
  • 4 wheel drive
  • Tilt level sensor with an audible alarm
  • Lowering alarm
  • Horn
  • Hour meter
  • Emergency pump
  • Proportional controls
  • Solid rough tire
  • Safety brackets
  • Dual flashing beacon
  • Automatic leveling hydraulic outriggers (XDW120RT XDW150RT)
  • Airline to platform
  • DC power supply
  • Motor cold starting components
  • Overload sensor
  • Moveable alarm components
  • Non-mark rough tires

Function Description

  • The metric system height is 2 meters higher than platform height
  • CE/AUS market: XDW can be used indoors and outdoors, to accommodate 3 persons
  • Climbing capability is suitable for driving on the slopes, refer to the operator’s manual for details on slope class level
  • Weight according to the opitions and standards vary from country to country.
